Aufnahme- und Auflagebolzen DIN 6321 (Ausgabe 1973)
Artikelnummer: 02020
Produktinfo
Material
Tool steel
Yta
Hardened and ground,
support surface without centring
Notera

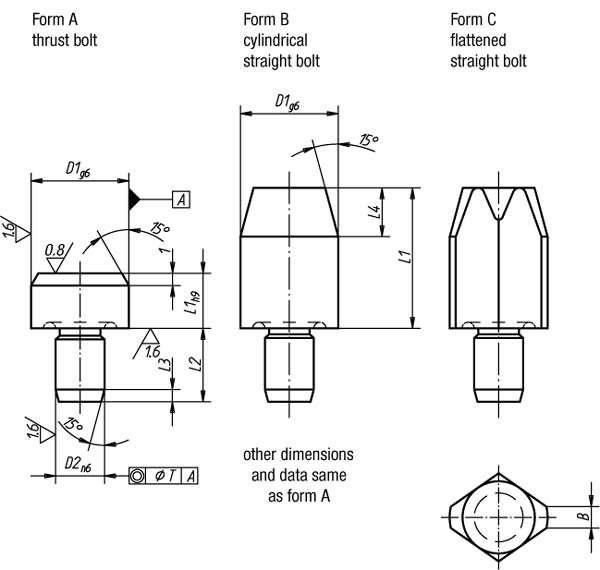

Thrust Bolts form A serve as a mount for workpieces and fixtures.
Straight Bolts form B serve to position workpieces and fixture parts in holes with locating dimensions.
The flattened form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only.
Form A and B can also be used as hardened stop and as foot for fixtures.
For similar bolts see 03120, 03130, 03140 and 03150.
| Order No. | L3 | T | Approx. weight g | L1 | ToleranceL1 | D2 | Form | D1 | L2 |
|---|
| 02020-106 | 1,2 | 0,02 | 1,5 | 5 | h9 | 4 | A | 6 | 6 |
| 02020-110 | 1,6 | 0,02 | 5,5 | 6 | h9 | 6 | A | 10 | 9 |
| 02020-116 | 2 | 0,04 | 16,0 | 8 | h9 | 8 | A | 16 | 12 |
| 02020-125 | 2,5 | 0,04 | 50,0 | 10 | h9 | 12 | A | 25 | 18 |
| Order No. | L1 | L3 | L4 | T | D2 | Approx. weight g | Surface finish | B | Form | D1 | L2 |
|---|
| 02020-206 | 7 | 1,2 | 4 | 0,02 | 4 | 2 | short | - | B | 6 | 6 |
| 02020-208 | 10 | 1,6 | 6 | 0,02 | 6 | 6 | short | - | B | 8 | 9 |
| 02020-210 | 10 | 1,6 | 6 | 0,02 | 6 | 7 | short | - | B | 10 | 9 |
| 02020-212 | 10 | 1,6 | 6 | 0,02 | 6 | 8 | short | - | B | 12 | 9 |
| 02020-216 | 13 | 2 | 8 | 0,04 | 8 | 21 | short | - | B | 16 | 12 |
| 02020-220 | 15 | 2,5 | 9 | 0,04 | 12 | 46 | short | - | B | 20 | 18 |
| 02020-225 | 15 | 2,5 | 9 | 0,04 | 12 | 66 | short | - | B | 25 | 18 |
| 02020-406 | 7 | 1,2 | 4 | 0,02 | 4 | 2 | short | 1 | C | 6 | 6 |
| 02020-408 | 10 | 1,6 | 6 | 0,02 | 6 | 6 | short | 1,6 | C | 8 | 9 |
| 02020-410 | 10 | 1,6 | 6 | 0,02 | 6 | 7 | short | 2,5 | C | 10 | 9 |
| 02020-412 | 10 | 1,6 | 6 | 0,02 | 6 | 8 | short | 2,5 | C | 12 | 9 |
| 02020-416 | 13 | 2 | 8 | 0,04 | 8 | 21 | short | 3,5 | C | 16 | 12 |
| 02020-420 | 15 | 2,5 | 9 | 0,04 | 12 | 46 | short | 5 | C | 20 | 18 |
| 02020-425 | 15 | 2,5 | 9 | 0,04 | 12 | 66 | short | 5 | C | 25 | 18 |
| Order No. | L1 | L3 | L4 | T | D2 | Approx. weight g | Surface finish | B | Form | D1 | L2 |
|---|
| 02020-306 | 12 | 1,2 | 4 | 0,02 | 4 | 3 | long | - | B | 6 | 6 |
| 02020-308 | 16 | 1,6 | 6 | 0,02 | 6 | 8 | long | - | B | 8 | 9 |
| 02020-310 | 18 | 1,6 | 6 | 0,02 | 6 | 10 | long | - | B | 10 | 9 |
| 02020-312 | 18 | 1,6 | 6 | 0,02 | 6 | 12 | long | - | B | 12 | 9 |
| 02020-316 | 22 | 2 | 8 | 0,04 | 8 | 31 | long | - | B | 16 | 12 |
| 02020-320 | 25 | 2,5 | 9 | 0,04 | 12 | 64 | long | - | B | 20 | 18 |
| 02020-325 | 25 | 2,5 | 9 | 0,04 | 12 | 98 | long | - | B | 25 | 18 |
| 02020-506 | 12 | 1,2 | 4 | 0,02 | 4 | 3 | long | 1 | C | 6 | 6 |
| 02020-508 | 16 | 1,6 | 6 | 0,02 | 6 | 8 | long | 1,6 | C | 8 | 9 |
| 02020-510 | 18 | 1,6 | 6 | 0,02 | 6 | 10 | long | 2,5 | C | 10 | 9 |
| 02020-512 | 18 | 1,6 | 6 | 0,02 | 6 | 12 | long | 2,5 | C | 12 | 9 |
| 02020-516 | 22 | 2 | 8 | 0,04 | 8 | 31 | long | 3,5 | C | 16 | 12 |
| 02020-520 | 25 | 2,5 | 9 | 0,04 | 12 | 64 | long | 5 | C | 20 | 18 |
| 02020-525 | 25 | 2,5 | 9 | 0,04 | 12 | 98 | long | 5 | C | 25 | 18 |
