Auflagebolzen mit Positionierzapfen
Artikelnummer: 02029
Produktinfo
Material
Body in tempered steel
Yta
Body heat-treated with black oxide finish, support surface case-hardened
Notera
The Thrust Bolts act as supports for rough and machined parts and as stops. They can also be integrated into standard clamping or support elements. To change these parts into male threaded feet, just screw and glue a grub screw or threaded stud in tap D.

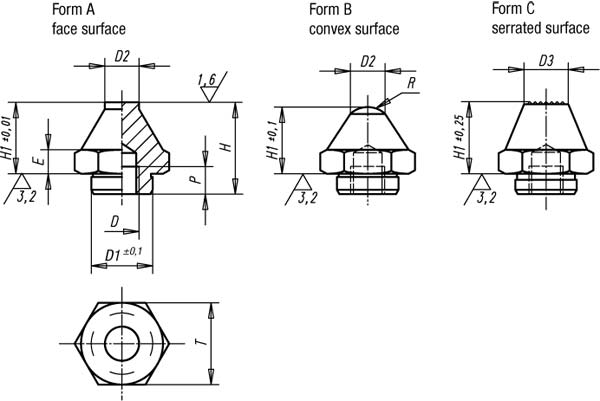

| Order No. | D | D2 | D3 | E | P | R | T | Approx. weight kg | Form | D1 | H | H1 |
|---|
| 02029-106012 | M6 | 7 | - | 4 | 6 | 6 | 17 | 0,042 | A | 11,9 | 16,5 | 12,5 |
| 02029-106025 | M6 | 7 | - | 4 | 6 | 6 | 17 | 0,062 | A | 11,9 | 29 | 25 |
| 02029-110020 | M10 | 10 | - | 7 | 10 | 7,5 | 24 | 0,130 | A | 17,8 | 25 | 20 |
| 02029-110040 | M10 | 10 | - | 7 | 10 | 7,5 | 24 | 0,180 | A | 17,8 | 46 | 40 |
| 02029-116030 | M16 | 20 | - | 13 | 16 | 26 | 41 | 0,295 | A | 25,8 | 40 | 30 |
| 02029-116060 | M16 | 20 | - | 13 | 16 | 26 | 41 | 0,480 | A | 25,8 | 70 | 60 |
| 02029-206012 | M6 | 7 | - | 4 | 6 | 6 | 17 | 0,042 | B | 11,9 | 16,5 | 12,5 |
| 02029-206025 | M6 | 7 | - | 4 | 6 | 6 | 17 | 0,062 | B | 11,9 | 29 | 25 |
| 02029-210020 | M10 | 10 | - | 7 | 10 | 7,5 | 24 | 0,130 | B | 17,8 | 25 | 20 |
| 02029-210040 | M10 | 10 | - | 7 | 10 | 7,5 | 24 | 0,180 | B | 17,8 | 46 | 40 |
| 02029-216030 | M16 | 20 | - | 13 | 16 | 26 | 41 | 0,295 | B | 25,8 | 40 | 30 |
| 02029-216060 | M16 | 20 | - | 13 | 16 | 26 | 41 | 0,480 | B | 25,8 | 70 | 60 |
| 02029-310020 | M10 | - | 15 | 7 | 10 | 7,5 | 24 | 0,130 | C | 17,8 | 25 | 20 |
| 02029-310040 | M10 | - | 10 | 7 | 10 | 7,5 | 24 | 0,180 | C | 17,8 | 46 | 40 |
| 02029-316030 | M16 | - | 20 | 13 | 16 | 26 | 41 | 0,295 | C | 25,8 | 40 | 30 |
| 02029-316060 | M16 | - | 20 | 13 | 16 | 26 | 41 | 0,480 | C | 25,8 | 70 | 60 |
Konstruktion
