Federnde Druckstücke mit Schlitz und Kugel

Artikelnummer: 03000

Federnde Druckstücke mit Schlitz und Kugel

Produktinfo

Material
Steel version: sleeve in steel quality class 5.8, ball in steel, spring in spring steel D Stainless steel version: sleeve 1.4305, ball 1.4034, spring 1.4310

Yta
Steel version black oxide finish, stainless steel version natural finish, ball in steel or stainless steel, hardened

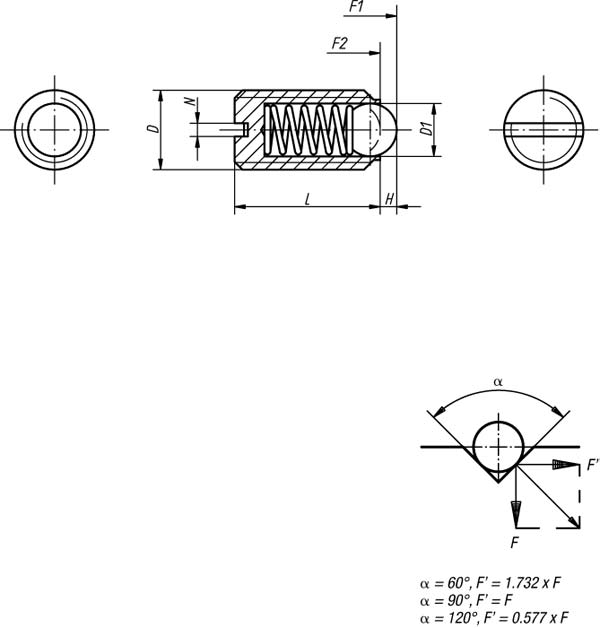

Order No.Surface finishDLSpring force initial pressure F1 approx. NSpring force final pressure F2 approx. NPackaging unitApprox. weight gMaterialD1HN
03000-03standard spring forceM371,53500,2steel1,50,50,4
03000-04standard spring forceM49410500,6steel2,50,80,6
03000-05standard spring forceM512611500,9steel30,90,8
03000-06standard spring forceM614913501,5steel3,511
03000-08standard spring forceM8161530503,5steel51,51,2
03000-10standard spring forceM10192035507steel621,6
03000-12standard spring forceM122230552510steel82,52
03000-16standard spring forceM1624651252524steel103,52,5
03000-20standard spring forceM2030801601044,3steel124,52,5
03010-03standard spring forceM371,53100,2stainless steel1,50,50,4
03010-04standard spring forceM49410250,6stainless steel2,50,80,6
03010-05standard spring forceM512611250,9stainless steel30,90,8
03010-06standard spring forceM614913251,5stainless steel3,511
03010-08standard spring forceM8161530103,5stainless steel51,51,2
03010-10standard spring forceM10192035107stainless steel621,6
03010-12standard spring forceM122230551010stainless steel82,52
03010-16standard spring forceM1624651251024stainless steel103,52,5
03010-20standard spring forceM203080160544,3stainless steel124,52,5
Order No.Surface finishDLSpring force initial pressure F1 approx. NSpring force final pressure F2 approx. NPackaging unitApprox. weight gMaterialD1HN
03000-203strong spring forceM3757500,2steel1,50,50,4
03000-204strong spring forceM491222500,6steel2,50,80,6
03000-205strong spring forceM5121930500,9steel30,90,8
03000-206strong spring forceM6142840501,5steel3,511
03000-208strong spring forceM8164773503,5steel51,51,2
03000-210strong spring forceM101966100257steel621,6
03000-212strong spring forceM1222661202510steel82,52
03000-216strong spring forceM1624901801024steel103,52,5
03000-220strong spring forceM20301152401044,3steel124,52,5
03010-203strong spring forceM3757100,2stainless steel1,50,50,4
03010-204strong spring forceM491222100,6stainless steel2,50,80,6
03010-205strong spring forceM5121930100,9stainless steel30,90,8
03010-206strong spring forceM6142840101,5stainless steel3,511
03010-208strong spring forceM8164773103,5stainless steel51,51,2
03010-210strong spring forceM101966100107stainless steel621,6
03010-212strong spring forceM1222661201010stainless steel82,52
03010-216strong spring forceM1624901801024stainless steel103,52,5
03010-220strong spring forceM2030115240544,3stainless steel124,52,5
Order No.Surface finishDLSpring force initial pressure F1 approx. NSpring force final pressure F2 approx. NPackaging unitApprox. weight gMaterialD1HN
03000-404long version, standard spring forceM416410100,6steel2,50,80,6
03000-405long version, standard spring forceM520611100,9steel30,90,8
03000-406long version, standard spring forceM625913101,5steel3,511
03000-408long version, standard spring forceM8301530103,5steel51,51,2
03000-410long version, standard spring forceM1035203557steel621,6
03000-412long version, standard spring forceM12403055510steel82,52
03000-416long version, standard spring forceM164565125524steel103,52,5
03010-404long version, standard spring forceM416410100,6stainless steel2,50,80,6
03010-405long version, standard spring forceM520611100,9stainless steel30,90,8
03010-406long version, standard spring forceM625913101,5stainless steel3,511
03010-408long version, standard spring forceM8301530103,5stainless steel51,51,2
03010-410long version, standard spring forceM1035203557stainless steel621,6
03010-412long version, standard spring forceM12403055510stainless steel82,52
03010-416long version, standard spring forceM164565125524stainless steel103,52,5

Konstruktion
