Federnde Druckstücke mit Schlitz und Druckbolzen
Artikelnummer: 03020
Produktinfo
Material
Steel version:
sleeve in steel quality class 5.8, pressure pin in steel, spring in spring steel D
Stainless steel version:
sleeve 1.4305, pressure pin 1.4034, spring 1.4310
Yta
Steel version black oxide finish,
stainless steel version natural finish,
pressure pin in steel or stainless steel, hardened

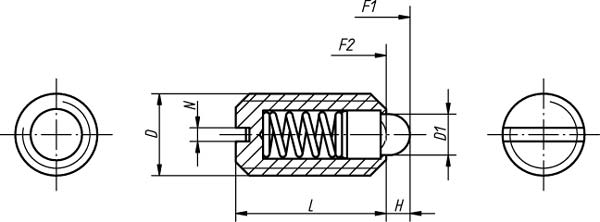

| Order No. | D | L | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Approx. weight g | Packaging unit | Material | D1 | H | N | Surface finish |
|---|
| 03020-04 | M4 | 9 | 6 | 20 | 0,39 | 50 | steel | 1,8 | 1,5 | 0,6 | standard spring force |
| 03020-05 | M5 | 12 | 6 | 20 | 1 | 50 | steel | 2,4 | 2 | 0,8 | standard spring force |
| 03020-06 | M6 | 14 | 7 | 20 | 1,7 | 50 | steel | 2,7 | 2 | 1 | standard spring force |
| 03020-08 | M8 | 16 | 15 | 30 | 4 | 50 | steel | 4 | 2 | 1,2 | standard spring force |
| 03020-10 | M10 | 19 | 20 | 35 | 7 | 50 | steel | 4,5 | 2,5 | 1,6 | standard spring force |
| 03020-12 | M12 | 22 | 30 | 55 | 13 | 25 | steel | 6 | 3,5 | 2 | standard spring force |
| 03020-16 | M16 | 24 | 45 | 100 | 24 | 10 | steel | 8,5 | 4,5 | 2,5 | standard spring force |
| 03020-20 | M20 | 30 | 60 | 120 | 46,3 | 10 | steel | 10 | 6,5 | 2,5 | standard spring force |
| 03025-04 | M4 | 9 | 6 | 20 | 0,39 | 10 | stainless steel | 1,8 | 1,5 | 0,6 | standard spring force |
| 03025-05 | M5 | 12 | 6 | 20 | 1 | 10 | stainless steel | 2,4 | 2 | 0,8 | standard spring force |
| 03025-06 | M6 | 14 | 7 | 20 | 1,7 | 10 | stainless steel | 2,7 | 2 | 1 | standard spring force |
| 03025-08 | M8 | 16 | 15 | 30 | 4 | 10 | stainless steel | 4 | 2 | 1,2 | standard spring force |
| 03025-10 | M10 | 19 | 20 | 35 | 7 | 10 | stainless steel | 4,5 | 2,5 | 1,6 | standard spring force |
| 03025-12 | M12 | 22 | 30 | 55 | 13 | 5 | stainless steel | 6 | 3,5 | 2 | standard spring force |
| 03025-16 | M16 | 24 | 45 | 100 | 24 | 5 | stainless steel | 8,5 | 4,5 | 2,5 | standard spring force |
| 03025-20 | M20 | 30 | 60 | 120 | 46,3 | 5 | stainless steel | 10 | 6,5 | 2,5 | standard spring force |
| Order No. | D | L | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Approx. weight g | Packaging unit | Material | Surface finish | D1 | H | N |
|---|
| 03020-104 | M4 | 9 | 3 | 10 | 0,39 | 25 | steel | light spring force | 1,8 | 1,5 | 0,6 |
| 03020-105 | M5 | 12 | 3 | 10 | 1 | 25 | steel | light spring force | 2,4 | 2 | 0,8 |
| 03020-106 | M6 | 14 | 4 | 10 | 1,7 | 25 | steel | light spring force | 2,7 | 2 | 1 |
| 03020-108 | M8 | 16 | 7 | 15 | 4 | 25 | steel | light spring force | 4 | 2 | 1,2 |
| 03020-110 | M10 | 19 | 9 | 16 | 7 | 25 | steel | light spring force | 4,5 | 2,5 | 1,6 |
| 03020-112 | M12 | 22 | 14 | 26 | 13 | 10 | steel | light spring force | 6 | 3,5 | 2 |
| 03020-116 | M16 | 24 | 22 | 50 | 24 | 10 | steel | light spring force | 8,5 | 4,5 | 2,5 |
| 03020-120 | M20 | 30 | 30 | 60 | 46,3 | 10 | steel | light spring force | 10 | 6,5 | 2,5 |
| 03025-104 | M4 | 9 | 3 | 10 | 0,39 | 10 | stainless steel | light spring force | 1,8 | 1,5 | 0,6 |
| 03025-105 | M5 | 12 | 3 | 10 | 1 | 10 | stainless steel | light spring force | 2,4 | 2 | 0,8 |
| 03025-106 | M6 | 14 | 4 | 10 | 1,7 | 10 | stainless steel | light spring force | 2,7 | 2 | 1 |
| 03025-108 | M8 | 16 | 7 | 15 | 4 | 10 | stainless steel | light spring force | 4 | 2 | 1,2 |
| 03025-110 | M10 | 19 | 9 | 16 | 7 | 10 | stainless steel | light spring force | 4,5 | 2,5 | 1,6 |
| 03025-112 | M12 | 22 | 14 | 26 | 13 | 5 | stainless steel | light spring force | 6 | 3,5 | 2 |
| 03025-116 | M16 | 24 | 22 | 50 | 24 | 5 | stainless steel | light spring force | 8,5 | 4,5 | 2,5 |
| 03025-120 | M20 | 30 | 30 | 60 | 46,3 | 5 | stainless steel | light spring force | 10 | 6,5 | 2,5 |
| Order No. | D | D1 | L | H | N | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Approx. weight g | Material | Surface finish | Packaging unit |
|---|
| 03020-205 | M5 | 2,4 | 12 | 2 | 0,8 | 9 | 25 | 1 | steel | strong spring force | 25 |
| 03020-206 | M6 | 2,7 | 14 | 2 | 1 | 11 | 25 | 1,7 | steel | strong spring force | 25 |
| 03020-208 | M8 | 4 | 16 | 2 | 1,2 | 22 | 43 | 4 | steel | strong spring force | 25 |
| 03020-210 | M10 | 4,5 | 19 | 2,5 | 1,6 | 20 | 54 | 7 | steel | strong spring force | 25 |
| 03020-212 | M12 | 6 | 22 | 3,5 | 2 | 36 | 94 | 13 | steel | strong spring force | 10 |
| 03020-216 | M16 | 8,5 | 24 | 4,5 | 2,5 | 60 | 110 | 24 | steel | strong spring force | 10 |
| 03025-205 | M5 | 2,4 | 12 | 2 | 0,8 | 9 | 25 | 1 | stainless steel | strong spring force | 10 |
| 03025-206 | M6 | 2,7 | 14 | 2 | 1 | 11 | 25 | 1,7 | stainless steel | strong spring force | 10 |
| 03025-208 | M8 | 4 | 16 | 2 | 1,2 | 22 | 43 | 4 | stainless steel | strong spring force | 10 |
| 03025-210 | M10 | 4,5 | 19 | 2,5 | 1,6 | 20 | 54 | 7 | stainless steel | strong spring force | 10 |
| 03025-212 | M12 | 6 | 22 | 3,5 | 2 | 36 | 94 | 13 | stainless steel | strong spring force | 5 |
| 03025-216 | M16 | 8,5 | 24 | 4,5 | 2,5 | 60 | 110 | 24 | stainless steel | strong spring force | 5 |
