Federnde Druckstücke mit Innensechskant und Kugel
Artikelnummer: 03030
Produktinfo
Material
Steel version:
sleeve in steel quality class 5.8, ball in steel, spring in spring steel D
Stainless steel version:
sleeve 1.4305, ball 1.4034, spring 1.4310
Yta
Steel version black oxide finish,
stainless steel version natural finish,
ball in steel or stainless steel, hardened

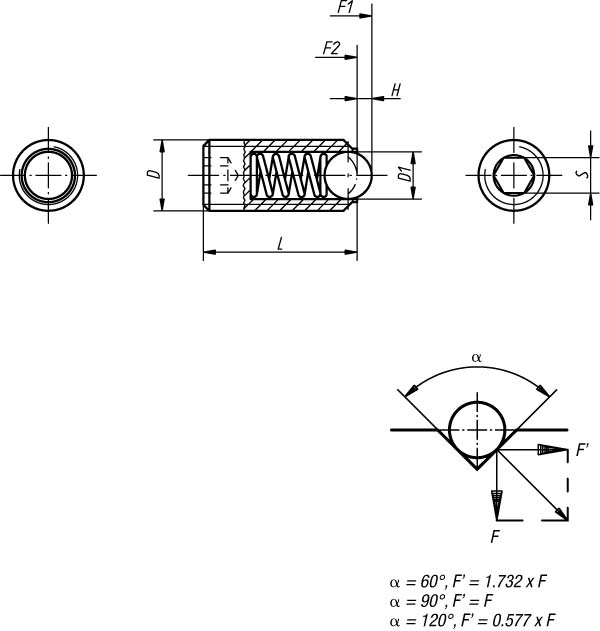

| Order No. | D | L | S | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Packaging unit | Approx. weight g | Material | D1 | H | Surface finish |
|---|
| 03030-03 | M3 | 9 | 1,5 | 1,5 | 3 | 25 | 0,23 | steel | 1,5 | 0,5 | standard spring force |
| 03030-04 | M4 | 10 | 2 | 4 | 10 | 25 | 0,46 | steel | 2,5 | 0,8 | standard spring force |
| 03030-05 | M5 | 14 | 2,5 | 6 | 11 | 25 | 1,27 | steel | 3 | 0,9 | standard spring force |
| 03030-06 | M6 | 15 | 3 | 9 | 13 | 25 | 2 | steel | 3,5 | 1 | standard spring force |
| 03030-08 | M8 | 18 | 4 | 15 | 30 | 25 | 4 | steel | 5 | 1,5 | standard spring force |
| 03030-10 | M10 | 23 | 5 | 20 | 35 | 25 | 8 | steel | 6 | 2 | standard spring force |
| 03030-12 | M12 | 26 | 6 | 30 | 55 | 10 | 12 | steel | 8 | 2,5 | standard spring force |
| 03030-16 | M16 | 33 | 8 | 65 | 125 | 10 | 31 | steel | 10 | 3,5 | standard spring force |
| 03030-20 | M20 | 43 | 10 | 80 | 160 | 5 | 64 | steel | 12 | 4,5 | standard spring force |
| 03030-24 | M24 | 48 | 12 | 90 | 180 | 5 | 100 | steel | 15 | 5,5 | standard spring force |
| 03035-03 | M3 | 9 | 1,5 | 1,5 | 3 | 10 | 0,23 | stainless steel | 1,5 | 0,5 | standard spring force |
| 03035-04 | M4 | 10 | 2 | 4 | 10 | 10 | 0,46 | stainless steel | 2,5 | 0,8 | standard spring force |
| 03035-05 | M5 | 14 | 2,5 | 6 | 11 | 10 | 1,27 | stainless steel | 3 | 0,9 | standard spring force |
| 03035-06 | M6 | 15 | 3 | 9 | 13 | 10 | 2 | stainless steel | 3,5 | 1 | standard spring force |
| 03035-08 | M8 | 18 | 4 | 15 | 30 | 10 | 4 | stainless steel | 5 | 1,5 | standard spring force |
| 03035-10 | M10 | 23 | 5 | 20 | 35 | 10 | 8 | stainless steel | 6 | 2 | standard spring force |
| 03035-12 | M12 | 26 | 6 | 30 | 55 | 5 | 12 | stainless steel | 8 | 2,5 | standard spring force |
| 03035-16 | M16 | 33 | 8 | 65 | 125 | 5 | 31 | stainless steel | 10 | 3,5 | standard spring force |
| 03035-20 | M20 | 43 | 10 | 80 | 160 | 1 | 64 | stainless steel | 12 | 4,5 | standard spring force |
| 03035-24 | M24 | 48 | 12 | 90 | 180 | 1 | 100 | stainless steel | 15 | 5,5 | standard spring force |
| Order No. | D | D1 | L | H | S | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Approx. weight g | Material | Surface finish | Packaging unit |
|---|
| 03030-404 | M4 | 2,5 | 16 | 0,8 | 2 | 4 | 10 | 0,89 | steel | long version, standard spring force | 25 |
| 03030-405 | M5 | 3 | 20 | 0,9 | 2,5 | 6 | 11 | 1,82 | steel | long version, standard spring force | 25 |
| 03030-406 | M6 | 3,5 | 25 | 1 | 3 | 9 | 13 | 3,37 | steel | long version, standard spring force | 25 |
| 03030-408 | M8 | 5 | 30 | 1,5 | 4 | 15 | 30 | 7,36 | steel | long version, standard spring force | 25 |
| 03030-410 | M10 | 6 | 35 | 2 | 5 | 20 | 35 | 13,52 | steel | long version, standard spring force | 25 |
| 03030-412 | M12 | 8 | 40 | 2,5 | 6 | 30 | 55 | 21,61 | steel | long version, standard spring force | 10 |
| 03030-416 | M16 | 10 | 45 | 3,5 | 8 | 65 | 125 | 46,56 | steel | long version, standard spring force | 10 |
| 03035-404 | M4 | 2,5 | 16 | 0,8 | 2 | 4 | 10 | 0,89 | stainless steel | long version, standard spring force | 10 |
| 03035-405 | M5 | 3 | 20 | 0,9 | 2,5 | 6 | 11 | 1,82 | stainless steel | long version, standard spring force | 10 |
| 03035-406 | M6 | 3,5 | 25 | 1 | 3 | 9 | 13 | 3,37 | stainless steel | long version, standard spring force | 10 |
| 03035-408 | M8 | 5 | 30 | 1,5 | 4 | 15 | 30 | 7,36 | stainless steel | long version, standard spring force | 10 |
| 03035-410 | M10 | 6 | 35 | 2 | 5 | 20 | 35 | 13,52 | stainless steel | long version, standard spring force | 10 |
| 03035-412 | M12 | 8 | 40 | 2,5 | 6 | 30 | 55 | 21,61 | stainless steel | long version, standard spring force | 5 |
| 03035-416 | M16 | 10 | 45 | 3,5 | 8 | 65 | 125 | 46,56 | stainless steel | long version, standard spring force | 5 |
| Order No. | D | L | S | Spring force initial pressure F1 approx. N | Spring force final pressure F2 approx. N | Packaging unit | Approx. weight g | Material | Surface finish | D1 | H |
|---|
| 03030-203 | M3 | 9 | 1,5 | 5 | 7 | 25 | 0,23 | steel | strong spring force | 1,5 | 0,5 |
| 03030-204 | M4 | 10 | 2 | 12 | 22 | 25 | 0,46 | steel | strong spring force | 2,5 | 0,8 |
| 03030-205 | M5 | 14 | 2,5 | 19 | 30 | 25 | 1,27 | steel | strong spring force | 3 | 0,9 |
| 03030-206 | M6 | 15 | 3 | 28 | 40 | 25 | 2 | steel | strong spring force | 3,5 | 1 |
| 03030-208 | M8 | 18 | 4 | 47 | 73 | 25 | 4 | steel | strong spring force | 5 | 1,5 |
| 03030-210 | M10 | 23 | 5 | 66 | 100 | 25 | 8 | steel | strong spring force | 6 | 2 |
| 03030-212 | M12 | 26 | 6 | 66 | 120 | 10 | 12 | steel | strong spring force | 8 | 2,5 |
| 03030-216 | M16 | 33 | 8 | 90 | 180 | 10 | 31 | steel | strong spring force | 10 | 3,5 |
| 03030-220 | M20 | 43 | 10 | 115 | 240 | 5 | 64 | steel | strong spring force | 12 | 4,5 |
| 03030-224 | M24 | 48 | 12 | 130 | 270 | 5 | 100 | steel | strong spring force | 15 | 5,5 |
| 03035-203 | M3 | 9 | 1,5 | 5 | 7 | 10 | 0,23 | stainless steel | strong spring force | 1,5 | 0,5 |
| 03035-204 | M4 | 10 | 2 | 12 | 22 | 10 | 0,46 | stainless steel | strong spring force | 2,5 | 0,8 |
| 03035-205 | M5 | 14 | 2,5 | 19 | 30 | 10 | 1,27 | stainless steel | strong spring force | 3 | 0,9 |
| 03035-206 | M6 | 15 | 3 | 28 | 40 | 10 | 2 | stainless steel | strong spring force | 3,5 | 1 |
| 03035-208 | M8 | 18 | 4 | 47 | 73 | 10 | 4 | stainless steel | strong spring force | 5 | 1,5 |
| 03035-210 | M10 | 23 | 5 | 66 | 100 | 10 | 8 | stainless steel | strong spring force | 6 | 2 |
| 03035-212 | M12 | 26 | 6 | 66 | 120 | 5 | 12 | stainless steel | strong spring force | 8 | 2,5 |
| 03035-216 | M16 | 33 | 8 | 90 | 180 | 5 | 31 | stainless steel | strong spring force | 10 | 3,5 |
| 03035-220 | M20 | 43 | 10 | 115 | 240 | 1 | 64 | stainless steel | strong spring force | 12 | 4,5 |
| 03035-224 | M24 | 48 | 12 | 130 | 270 | 1 | 100 | stainless steel | strong spring force | 15 | 5,5 |
