Kugeldruckschrauben ohne Kopf mit voller Kugel
Artikelnummer: 07110
Produktinfo
Notera

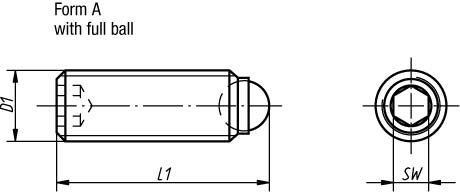

Form A with full ball is used when a clean, polished pressure surface is required.
Further lengths have been designed especially so that Ball Pressure Screws can be glued up. They allow mechanical connecting elements with external thread to be made cost-effectively for small and medium-sized series.
Statements on load capacity are not valid for stainless steel versions.
| Order No. | L1 | SW | Approx. weight g | Ball-Ø | D1 | Load capacity max. kN (static load only) | Material | Form |
|---|
| 07110-1046 | 6 | 2 | 0,4 | 2,5 | M4 | 3,5 | steel | A |
| 07110-10410 | 10 | 2 | 0,7 | 2,5 | M4 | 3,5 | steel | A |
| 07110-10416 | 16 | 2 | 1,1 | 2,5 | M4 | 3,5 | steel | A |
| 07110-1058 | 8 | 2,5 | 0,8 | 3 | M5 | 4,5 | steel | A |
| 07110-10512 | 12 | 2,5 | 1,3 | 3 | M5 | 4,5 | steel | A |
| 07110-10520 | 20 | 2,5 | 2,3 | 3 | M5 | 4,5 | steel | A |
| 07110-10610 | 10,8 | 3 | 1,5 | 4 | M6 | 9 | steel | A |
| 07110-10616 | 16,8 | 3 | 2,4 | 4 | M6 | 9 | steel | A |
| 07110-10620 | 20,8 | 3 | 3,0 | 4 | M6 | 9 | steel | A |
| 07110-10625 | 25,8 | 3 | 3,9 | 4 | M6 | 9 | steel | A |
| 07110-10650 | 50,8 | 3 | 10,6 | 4 | M6 | 9 | steel | A |
| 07110-10660 | 60,8 | 3 | 13,5 | 4 | M6 | 9 | steel | A |
| 07110-10810 | 11,2 | 4 | 2,6 | 5,5 | M8 | 10 | steel | A |
| 07110-10812 | 13,2 | 4 | 3,2 | 5,5 | M8 | 10 | steel | A |
| 07110-10820 | 21,2 | 4 | 5,7 | 5,5 | M8 | 15 | steel | A |
| 07110-10825 | 26,2 | 4 | 7,3 | 5,5 | M8 | 15 | steel | A |
| 07110-10830 | 31,2 | 4 | 8,9 | 5,5 | M8 | 15 | steel | A |
| 07110-10850 | 51,2 | 4 | 18,8 | 5,5 | M8 | 15 | steel | A |
| 07110-10860 | 61,2 | 4 | 24,0 | 5,5 | M8 | 15 | steel | A |
| 07110-10880 | 81,2 | 4 | 30,7 | 5,5 | M8 | 15 | steel | A |
| 07110-11012 | 13,7 | 5 | 5,0 | 7 | M10 | 20 | steel | A |
| 07110-11016 | 17,7 | 5 | 6,8 | 7 | M10 | 20 | steel | A |
| 07110-11020 | 21,7 | 5 | 8,7 | 7 | M10 | 20 | steel | A |
| 07110-11025 | 26,7 | 5 | 11,2 | 7 | M10 | 20 | steel | A |
| 07110-11035 | 36,7 | 5 | 16,2 | 7 | M10 | 20 | steel | A |
| 07110-11216 | 18 | 6 | 10,0 | 8,5 | M12 | 30 | steel | A |
| 07110-11220 | 22 | 6 | 12,4 | 8,5 | M12 | 30 | steel | A |
| 07110-11230 | 32 | 6 | 19,6 | 8,5 | M12 | 30 | steel | A |
| 07110-11240 | 42 | 6 | 28,5 | 8,5 | M12 | 30 | steel | A |
| 07110-11620 | 23,3 | 8 | 22,0 | 12 | M16 | 60 | steel | A |
| 07110-11625 | 28,3 | 8 | 28,0 | 12 | M16 | 60 | steel | A |
| 07110-11635 | 38,3 | 8 | 41,0 | 12 | M16 | 60 | steel | A |
| 07110-11650 | 53,3 | 8 | 48,0 | 12 | M16 | 60 | steel | A |
| 07110-12030 | 34,2 | 10 | 54,0 | 15 | M20 | 90 | steel | A |
| 07110-12040 | 44,2 | 10 | 74,0 | 15 | M20 | 90 | steel | A |
| 07110-12060 | 64,2 | 10 | 120,0 | 15 | M20 | 90 | steel | A |
| 07110-12435 | 39,7 | 12 | 90,0 | 18 | M24 | 120 | steel | A |
| 07110-12450 | 54,7 | 12 | 130,0 | 18 | M24 | 120 | steel | A |
| 07110-12480 | 84,7 | 12 | 235,0 | 18 | M24 | 120 | steel | A |
| 07111-1046 | 6 | 2 | 0,4 | 2,5 | M4 | - | stainless steel | A |
| 07111-10410 | 10 | 2 | 0,7 | 2,5 | M4 | - | stainless steel | A |
| 07111-10416 | 16 | 2 | 1,1 | 2,5 | M4 | - | stainless steel | A |
| 07111-1058 | 8 | 2,5 | 0,8 | 3 | M5 | - | stainless steel | A |
| 07111-10512 | 12 | 2,5 | 1,3 | 3 | M5 | - | stainless steel | A |
| 07111-10520 | 20 | 2,5 | 2,3 | 3 | M5 | - | stainless steel | A |
| 07111-10610 | 10,8 | 3 | 1,5 | 4 | M6 | - | stainless steel | A |
| 07111-10616 | 16,8 | 3 | 2,4 | 4 | M6 | - | stainless steel | A |
| 07111-10620 | 20,8 | 3 | 3,0 | 4 | M6 | - | stainless steel | A |
| 07111-10625 | 25,8 | 3 | 3,9 | 4 | M6 | - | stainless steel | A |
| 07111-10810 | 11,2 | 4 | 2,6 | 5,5 | M8 | - | stainless steel | A |
| 07111-10812 | 13,2 | 4 | 3,2 | 5,5 | M8 | - | stainless steel | A |
| 07111-10820 | 21,2 | 4 | 5,7 | 5,5 | M8 | - | stainless steel | A |
| 07111-10825 | 26,2 | 4 | 7,3 | 5,5 | M8 | - | stainless steel | A |
| 07111-10830 | 31,2 | 4 | 8,9 | 5,5 | M8 | - | stainless steel | A |
| 07111-11012 | 13,7 | 5 | 5,0 | 7 | M10 | - | stainless steel | A |
| 07111-11016 | 17,7 | 5 | 6,8 | 7 | M10 | - | stainless steel | A |
| 07111-11020 | 21,7 | 5 | 8,7 | 7 | M10 | - | stainless steel | A |
| 07111-11025 | 26,7 | 5 | 11,2 | 7 | M10 | - | stainless steel | A |
| 07111-11035 | 36,7 | 5 | 16,2 | 7 | M10 | - | stainless steel | A |
| 07111-11216 | 18 | 6 | 10,0 | 8,5 | M12 | - | stainless steel | A |
| 07111-11220 | 22 | 6 | 12,4 | 8,5 | M12 | - | stainless steel | A |
| 07111-11230 | 32 | 6 | 19,6 | 8,5 | M12 | - | stainless steel | A |
| 07111-11240 | 42 | 6 | 28,5 | 8,5 | M12 | - | stainless steel | A |
| 07111-11620 | 23,3 | 8 | 22,0 | 12 | M16 | - | stainless steel | A |
| 07111-11625 | 28,3 | 8 | 28,0 | 12 | M16 | - | stainless steel | A |
| 07111-11635 | 38,3 | 8 | 41,0 | 12 | M16 | - | stainless steel | A |
| 07111-11650 | 53,3 | 8 | 48,0 | 12 | M16 | - | stainless steel | A |
