Teller für Gelenkfüße, Zinkdruckguss oder Nirosta

Artikelnummer: 27801

Produktinfo

Material
Plate in die cast zinc or stainless steel 1.4305, anti-slip-plate in thermoplastic elastomer

Yta
Plate in die cast zinc, black powder-coated; plate in stainless steel, natural finish

Notera

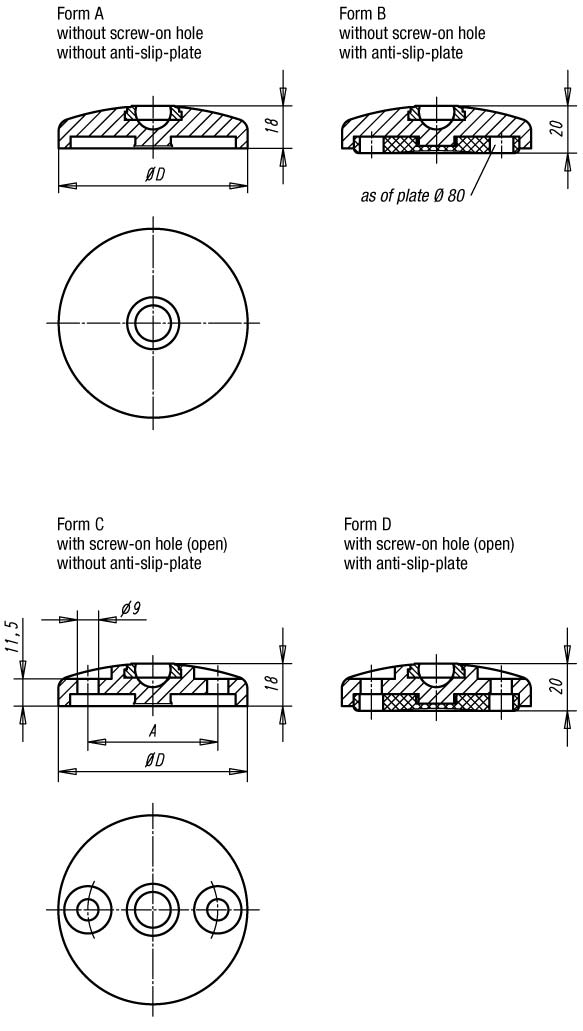

Swivel Pads consist of a plate and a threaded spindle resp. a ball joint. Any plate can be combined with any threaded spindle resp. any ball joint. The Anti-Slip-Plate absorbs vibrations and prevents slipping of the Swivel Pad. For matching threaded spindles see 27810. For matching ball joints see 27811.

Order No.	Material	Surface finish	D	A	Load capacity max. kN	Approx. weight kg	Form
27801-10301	die cast zinc	plate for swivel pads	30	-	20	0,048	A
27801-10401	die cast zinc	plate for swivel pads	40	-	30	0,070	A
27801-10451	die cast zinc	plate for swivel pads	45	-	30	0,090	A
27801-10501	die cast zinc	plate for swivel pads	50	-	30	0,126	A
27801-10601	die cast zinc	plate for swivel pads	60	-	30	0,160	A
27801-10801	die cast zinc	plate for swivel pads	80	-	30	0,260	A
27801-11001	die cast zinc	plate for swivel pads	100	-	35	0,400	A
27801-11201	die cast zinc	plate for swivel pads	120	-	35	0,584	A
27801-20301	die cast zinc	plate for swivel pads	30	-	20	0,050	B
27801-20401	die cast zinc	plate for swivel pads	40	-	30	0,074	B
27801-20451	die cast zinc	plate for swivel pads	45	-	30	0,096	B
27801-20501	die cast zinc	plate for swivel pads	50	-	30	0,134	B
27801-20601	die cast zinc	plate for swivel pads	60	-	30	0,172	B
27801-20801	die cast zinc	plate for swivel pads	80	-	30	0,283	B
27801-21001	die cast zinc	plate for swivel pads	100	-	35	0,437	B
27801-21201	die cast zinc	plate for swivel pads	120	-	35	0,644	B

Order No.	Material	Surface finish	D	A	Load capacity max. kN	Approx. weight kg	Form
27801-30801	die cast zinc	plate for swivel pads	80	55	30	0,260	C
27801-31001	die cast zinc	plate for swivel pads	100	74	35	0,377	C
27801-31201	die cast zinc	plate for swivel pads	120	94	35	0,570	C
27801-40801	die cast zinc	plate for swivel pads	80	55	30	0,283	D
27801-41001	die cast zinc	plate for swivel pads	100	74	35	0,414	D
27801-41201	die cast zinc	plate for swivel pads	120	94	35	0,630	D

Order No.	Material	Surface finish	D	A	Load capacity max. kN	Approx. weight kg	Price_Nox	Form
27801-10302	stainless steel	plate for swivel pads	30	-	20	0,062	6,62	A
27801-10402	stainless steel	plate for swivel pads	40	-	30	0,097	7,55	A
27801-10452	stainless steel	plate for swivel pads	45	-	30	0,123	8,46	A
27801-10502	stainless steel	plate for swivel pads	50	-	35	0,158	9,93	A
27801-10602	stainless steel	plate for swivel pads	60	-	35	0,218	13,65	A
27801-10802	stainless steel	plate for swivel pads	80	-	35	0,380	19,87	A
27801-11002	stainless steel	plate for swivel pads	100	-	40	0,605	30,67	A
27801-11202	stainless steel	plate for swivel pads	120	-	40	0,844	39,68	A
27801-20302	stainless steel	plate for swivel pads	30	-	20	0,064	6,99	B
27801-20402	stainless steel	plate for swivel pads	40	-	30	0,101	8,01	B
27801-20452	stainless steel	plate for swivel pads	45	-	30	0,129	8,97	B
27801-20502	stainless steel	plate for swivel pads	50	-	35	0,166	10,50	B
27801-20602	stainless steel	plate for swivel pads	60	-	35	0,230	14,93	B
27801-20802	stainless steel	plate for swivel pads	80	-	35	0,403	20,72	B
27801-21002	stainless steel	plate for swivel pads	100	-	40	0,642	33,85	B
27801-21202	stainless steel	plate for swivel pads	120	-	40	0,904	41,25	B

Order No.	Material	Surface finish	D	A	Load capacity max. kN	Approx. weight kg	Form
27801-30802	stainless steel	plate for swivel pads	80	55	35	0,354	C
27801-31002	stainless steel	plate for swivel pads	100	74	40	0,587	C
27801-31202	stainless steel	plate for swivel pads	120	94	40	0,830	C
27801-40802	stainless steel	plate for swivel pads	80	55	35	0,377	D
27801-41002	stainless steel	plate for swivel pads	100	74	40	0,624	D
27801-41202	stainless steel	plate for swivel pads	120	94	40	0,890	D
