Scharniere aus Zinkdruckguss mit Klemmfunktion
Artikelnummer: 27868
Produktinfo
Material
Hinge in die cast zinc; axle in steel; clamping lever glass-fibre reinforced thermoplastic; mechanics in steel
Yta
Hinge black powder-coated; axle galvanized; clamping lever black; mechanics black galvanized
Notera
The hinges can be clamped in every position due to adjustable clamping lever.
The hinges are available with or without guide tabs for aluminium profiles.
| Order No. | A1 | A2 | Load bearing capacity N | Approx. weight kg | Guide tabs for slot |
|---|
| 27868-40232300 | 22,5 | 22,5 | 2500 | 0,211 | - |
| 27868-40232308 | 22,5 | 22,5 | 2500 | 0,211 | 8 |
| 27868-40232310 | 22,5 | 22,5 | 2500 | 0,211 | 10 |
| 27868-40232500 | 22,5 | 25 | 2500 | 0,211 | - |
| 27868-40232508 | 22,5 | 25 | 2500 | 0,211 | 8 |
| 27868-40232510 | 22,5 | 25 | 2500 | 0,211 | 10 |
| 27868-45252500 | 25 | 25 | 2500 | 0,211 | - |
| 27868-45252508 | 25 | 25 | 2500 | 0,211 | 8 |
| 27868-45252510 | 25 | 25 | 2500 | 0,211 | 10 |

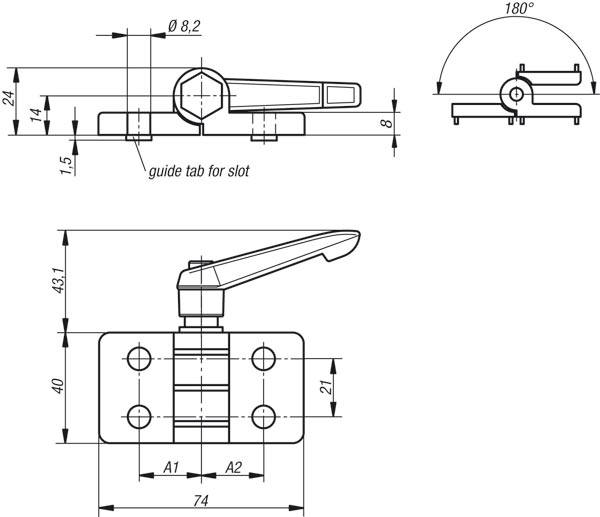

Konstruktion
