Adapter für Positionsanzeiger
Artikelnummer: 29190
Produktinfo
Notera

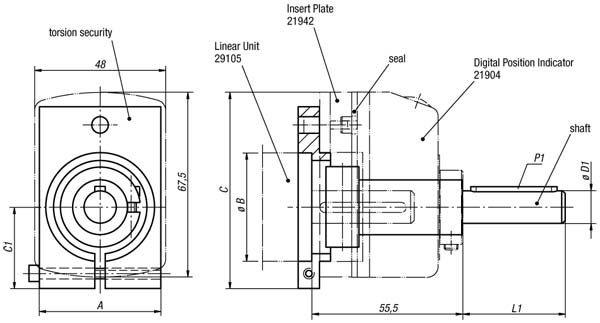

Digital position indicators can be attached to linear units with ball bearings with the help of the Adapter. As a rule a counter is used, this being regulated by the pitch of the ACME threaded spindle. This means that the indicator corresponds after one rotation of the spindle to the spindle pitch.
| Order No. | Suitable for type E | A | B | C | C1 | L1 | P1 feather to DIN 6885 | D1 |
|---|
| 29190-18 | 18 | 45 | 18 | 71 | 29 | 17 | 2 x 2 x 12 | 6 |
| 29190-30 | 30 | 45 | 30 | 66 | 24 | 18 | 2 x 2 x 12 | 8 |
| 29190-40 | 40 | 45 | 40 | 71 | 29 | 38 | 4 x 4 x 32 | 12 |
| 29190-50 | 50 | 56 | 50 | 75 | 33 | 38 | 4 x 4 x 32 | 12 |
