Schubstangenspanner schwere Ausführung mit Handgriff
Artikelnummer: 05840
Produktinfo
Material
Steel;
body and handle in spheroidal graphite cast iron (GJS)
Yta
Phosphated, plastic handle oil-resistant
Notera
The Push-Pull Clamps can be locked in open and closed handle positions. Therefore they can be used for push and pull.
The clamps are also equipped with a stroke limiter for advance and retraction strokes.
See 05885, 05886, 05887, 05890 for accessories.

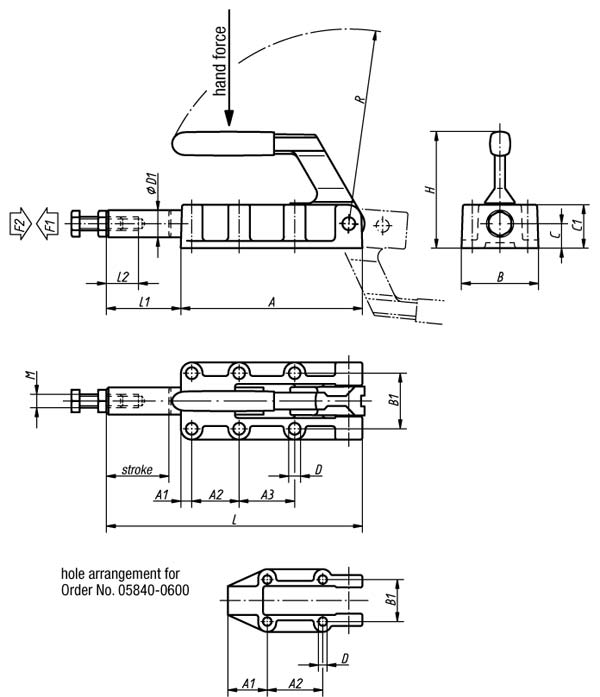

| Order No. | A | A1 | A2 | A3 | B | B1 | C | C1 | D | L | L1 | R | Stroke | Approx. weight kg | Clamping force F1 N | Hand force N | Holding force F2 N | Opening angle of handle | D1 | H | M | L2 |
|---|
| 05840-0600 | 89 | 25 | 36,5 | - | 46 | 33,4 | 12 | 23 | 5,5 | 127 | 38 | 95 | 32 | 0,484 | 3000 | 140 | 6000 | 185° | 14 | 63 | M8 | 30 |
| 05840-1200 | 133 | 8 | 35 | 41 | 61 | 41 | 18 | 32 | 8,5 | 188 | 55 | 143 | 50 | 1,400 | 5000 | 150 | 12000 | 185° | 20 | 88 | M10 | 40 |
| 05840-2500 | 197 | 11 | 45 | 45 | 82 | 54 | 22 | 41 | 10,3 | 300 | 103 | 200 | 75 | 3,766 | 5000 | 170 | 25000 | 185° | 25 | 108 | M12 | 60 |
| 05840-5000 | 254 | 10 | 70 | 70 | 85 | 57 | 28 | 50 | 10,3 | 390 | 136 | 245 | 100 | 6,254 | 7000 | 200 | 50000 | 185° | 30 | 127 | M16 | 60 |
