Kniehebelpressen Pneumatikausführung

Artikelnummer: 05870

Produktinfo

Material
Press stand in cast steel, Pneumatic Push-Pull Clamp see 05860, 05861

Yta
Press stand painted black, Pneumatic Push-Pull Clamp see 05860, 05861

Notera
Pneumatic Push-Pull Clamps can be reordered as a complete assembly kit. See 05860, 5861 for specifications. See 05860, 05861, 05885, 05886, 05887, 05890 for accessories.

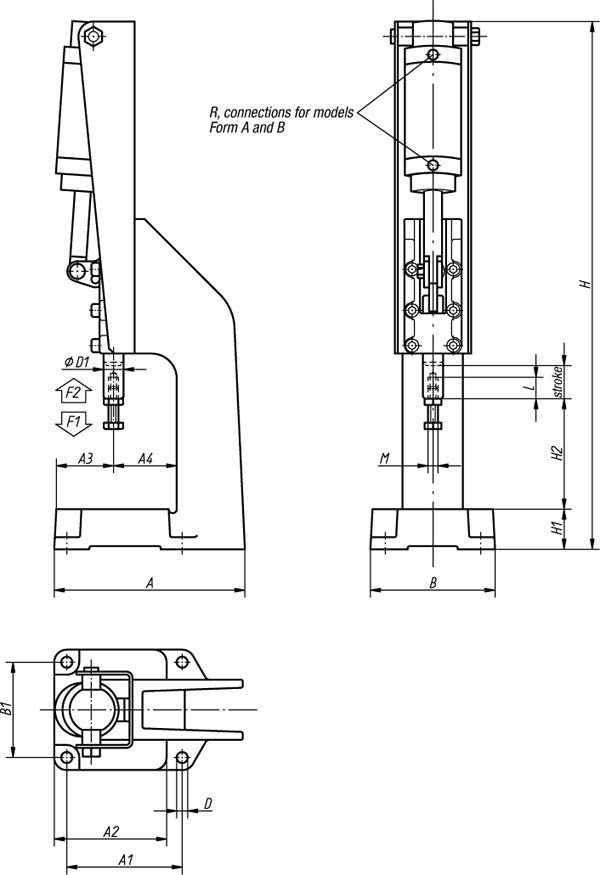

Order No.	A	A1	A2	A3	A4	B	B1	D	H2	L	R	Stroke	Air consumption per cycle	No. of strokes per min. at 6 bar	Approx. weight kg	Clamping force F1 N	Holding force F2 N	Operating pressure bar	D1	H	M	Form	H1
05870-0600	150	95	94	48	52	100	80	9	75	30	G 1/8	25	0,09 dm³	60	5,250	see 05860	6000	2 - 6	14	432	M8	A	30
05870-1200	192	115	112	57	63	120	95	11	100	40	G 1/8	32	0,28 dm³	50	9,850	see 05860	12000	2 - 6	20	575	M10	A	40
05870-2500	238	145	142	71	79	150	125	11	120	60	G 1/4	50	0,60 dm³	45	19,050	see 05860	25000	2 - 6	25	748	M12	A	50
05871-0600	150	95	94	48	52	100	80	9	75	30	G 1/8	25	0,09 dm³	60	5,250	see 05861	6000	2 - 6	14	432	M8	B	30
05871-1200	192	115	112	57	63	120	95	11	100	40	G 1/8	32	0,28 dm³	50	9,850	see 05861	12000	2 - 6	20	575	M10	B	40
05871-2500	238	145	142	71	79	150	125	11	120	60	G 1/4	50	0,60 dm³	45	19,050	see 05861	25000	2 - 6	25	748	M12	B	50

Konstruktion
