Spanngelenke
Artikelnummer: 06620
Produktinfo
Notera
Clamping Joints are used to clamp round cross sections (bars, tubes, etc.) and are continuously adjustable.
The design has been kept as simple as possible and, in conjunction with the adjustable Clamp Lever, it permits rapid clamping.

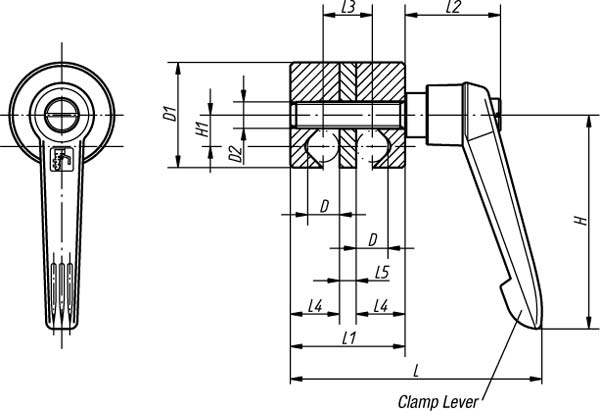

| Order No. | Size | D | D2 | L | L1 | L3 | L4 | L5 | Approx. weight kg | D1 | L2 | H | H1 |
|---|
| 06620-01 | 1 | 8 | M8 | 72 | 31 | 13 | 13 | 5 | 0,082 | 28 | 29 | 65 | 8,5 |
| 06620-02 | 2 | 10 | M8 | 76 | 35 | 15 | 15 | 5 | 0,100 | 32 | 29 | 65 | 9,5 |
| 06620-03 | 3 | 12 | M8 | 81 | 40 | 18 | 17 | 6 | 0,127 | 36 | 29 | 65 | 10,5 |
| 06620-04 | 4 | 16 | M10 | 103 | 50 | 22 | 22 | 6 | 0,233 | 45 | 37,5 | 80 | 13,5 |
| 06620-05 | 5 | 20 | M10 | 131 | 70 | 30 | 30 | 10 | 0,750 | 74 | 42,5 | 95 | 22 |
Konstruktion
