Kreuzgriffe DIN 6335 aus Grauguss

Artikelnummer: 06160

Kreuzgriffe DIN 6335 aus Grauguss

Produktinfo

Material
Grey cast iron GJL 200

Yta
Natural finish tumbled

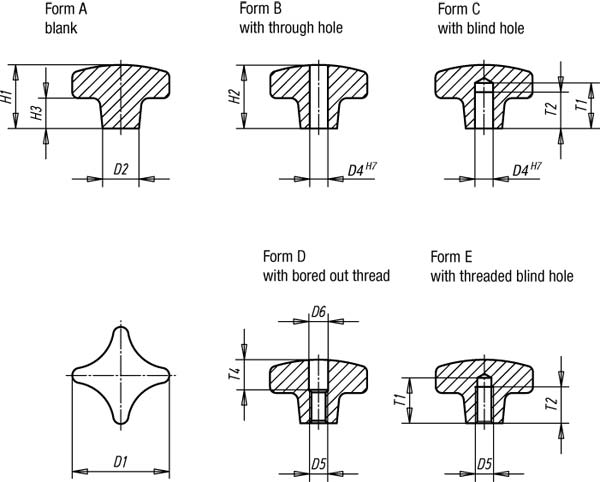

Order No.	Surface finish	D2	D4	H2	H3	Approx. weight kg Form A	Form	D1	H1
06160-106	tumbled	12	-	-	10	0,034	A	32	21
06160-108	tumbled	14	-	-	14	0,063	A	40	26
06160-110	tumbled	18	-	-	20	0,125	A	50	34
06160-112	tumbled	20	-	-	25	0,220	A	63	42
06160-116	tumbled	25	-	-	30	0,430	A	80	52
06160-120	tumbled	32	-	-	38	0,750	A	100	65

Order No.	Surface finish	D2	D4	H2	H3	ToleranceD4	Form	D1	H1
06160-206	tumbled	12	6	20	10	H7	B	32	-
06160-208	tumbled	14	8	25	14	H7	B	40	-
06160-210	tumbled	18	10	32	20	H7	B	50	-
06160-212	tumbled	20	12	40	25	H7	B	63	-
06160-216	tumbled	25	16	50	30	H7	B	80	-
06160-220	tumbled	32	20	63	38	H7	B	100	-

Order No.	Surface finish	D2	D4	D5	D6	H2	H3	T1	T2	T4	ToleranceD4	Form	D1	H1
06160-306	tumbled	12	6	-	-	-	10	15	12	-	H7	C	32	21
06160-308	tumbled	14	8	-	-	-	14	18	15	-	H7	C	40	26
06160-310	tumbled	18	10	-	-	-	20	21	18	-	H7	C	50	34
06160-312	tumbled	20	12	-	-	-	25	25	22	-	H7	C	63	42
06160-316	tumbled	25	16	-	-	-	30	32	28	-	H7	C	80	52
06160-320	tumbled	32	20	-	-	-	38	40	36	-	H7	C	100	65

Order No.	Surface finish	D2	D4	D5	D6	H2	H3	T1	T2	T4	Form	D1	H1
06160-406	tumbled	12	-	M6	6,4	20	10	-	-	10	D	32	-
06160-408	tumbled	14	-	M8	8,4	25	14	-	-	12	D	40	-
06160-410	tumbled	18	-	M10	10,5	32	20	-	-	16	D	50	-
06160-412	tumbled	20	-	M12	13	40	25	-	-	20	D	63	-
06160-416	tumbled	25	-	M16	17	50	30	-	-	30	D	80	-
06160-420	tumbled	32	-	M20	21	63	38	-	-	38	D	100	-

Order No.	Surface finish	D2	D4	D5	D6	H2	H3	T1	T2	T4	Form	D1	H1
06160-506	tumbled	12	-	M6	-	-	10	15	12	-	E	32	21
06160-508	tumbled	14	-	M8	-	-	14	18	15	-	E	40	26
06160-510	tumbled	18	-	M10	-	-	20	21	18	-	E	50	34
06160-512	tumbled	20	-	M12	-	-	25	25	22	-	E	63	42
06160-516	tumbled	25	-	M16	-	-	30	32	28	-	E	80	52
06160-520	tumbled	32	-	M20	-	-	38	40	36	-	E	100	65

Konstruktion
