Pilzknöpfe

Artikelnummer: 06241

Pilzknöpfe

Produktinfo

Notera
DELTA Add the desired knob cap colour here; no colour code is required with anthracite grey knob caps

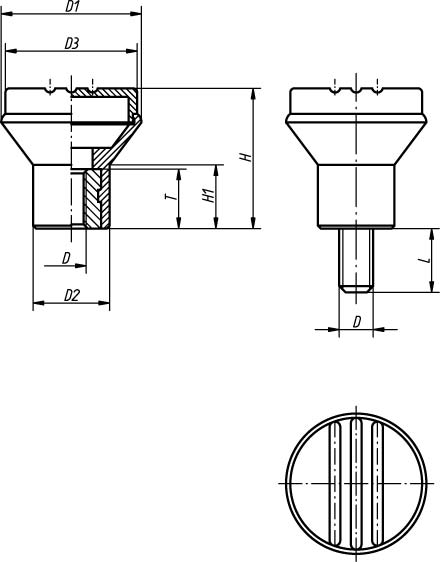

Order No.	Surface finish	Size	D	D2	D3	T	Approx. weight kg	Colour	D1	H	H1
06241-04	bush in steel	1	M4	12	19	10	0,009	anthracite grey	21	21	10
06241-045	bush in steel	1	M4	12	19	10	0,009	light grey	21	21	10
06241-046	bush in steel	1	M4	12	19	10	0,009	traffic red	21	21	10
06241-047	bush in steel	1	M4	12	19	10	0,009	bright yellow	21	21	10
06241-05	bush in steel	1	M5	12	19	10	0,008	anthracite grey	21	21	10
06241-055	bush in steel	1	M5	12	19	10	0,008	light grey	21	21	10
06241-056	bush in steel	1	M5	12	19	10	0,008	traffic red	21	21	10
06241-057	bush in steel	1	M5	12	19	10	0,008	bright yellow	21	21	10
06241-06	bush in steel	2	M6	14	23	10	0,009	anthracite grey	25	25	12
06241-065	bush in steel	2	M6	14	23	10	0,009	light grey	25	25	12
06241-066	bush in steel	2	M6	14	23	10	0,009	traffic red	25	25	12
06241-067	bush in steel	2	M6	14	23	10	0,009	bright yellow	25	25	12
06241-08	bush in steel	3	M8	19	31	14	0,022	anthracite grey	33	33	15
06241-085	bush in steel	3	M8	19	31	14	0,022	light grey	33	33	15
06241-086	bush in steel	3	M8	19	31	14	0,022	traffic red	33	33	15
06241-087	bush in steel	3	M8	19	31	14	0,022	bright yellow	33	33	15

Order No.	Surface finish	Size	D	D2	D3	T	Approx. weight kg	Colour	D1	H	H1
06241-004	bush in stainless steel	1	M4	12	19	10	0,009	anthracite grey	21	21	10
06241-0045	bush in stainless steel	1	M4	12	19	10	0,009	light grey	21	21	10
06241-0046	bush in stainless steel	1	M4	12	19	10	0,009	traffic red	21	21	10
06241-0047	bush in stainless steel	1	M4	12	19	10	0,009	bright yellow	21	21	10
06241-005	bush in stainless steel	1	M5	12	19	10	0,008	anthracite grey	21	21	10
06241-0055	bush in stainless steel	1	M5	12	19	10	0,008	light grey	21	21	10
06241-0056	bush in stainless steel	1	M5	12	19	10	0,008	traffic red	21	21	10
06241-0057	bush in stainless steel	1	M5	12	19	10	0,008	bright yellow	21	21	10
06241-006	bush in stainless steel	2	M6	14	23	10	0,009	anthracite grey	25	25	12
06241-0065	bush in stainless steel	2	M6	14	23	10	0,009	light grey	25	25	12
06241-0066	bush in stainless steel	2	M6	14	23	10	0,009	traffic red	25	25	12
06241-0067	bush in stainless steel	2	M6	14	23	10	0,009	bright yellow	25	25	12
06241-008	bush in stainless steel	3	M8	19	31	14	0,022	anthracite grey	33	33	15
06241-0085	bush in stainless steel	3	M8	19	31	14	0,022	light grey	33	33	15
06241-0086	bush in stainless steel	3	M8	19	31	14	0,022	traffic red	33	33	15
06241-0087	bush in stainless steel	3	M8	19	31	14	0,022	bright yellow	33	33	15

Order No.	Surface finish	Size	D	D2	D3	Approx. weight kg	Colour	L	D1	H	H1
06242-04X10	bolt in steel	1	M4	12	19	0,010	anthracite grey	10	21	21	10
06242-045X10	bolt in steel	1	M4	12	19	0,010	light grey	10	21	21	10
06242-046X10	bolt in steel	1	M4	12	19	0,010	traffic red	10	21	21	10
06242-047X10	bolt in steel	1	M4	12	19	0,010	bright yellow	10	21	21	10
06242-05X10	bolt in steel	1	M5	12	19	0,010	anthracite grey	10	21	21	10
06242-055X10	bolt in steel	1	M5	12	19	0,010	light grey	10	21	21	10
06242-056X10	bolt in steel	1	M5	12	19	0,010	traffic red	10	21	21	10
06242-057X10	bolt in steel	1	M5	12	19	0,010	bright yellow	10	21	21	10
06242-06X15	bolt in steel	2	M6	14	23	0,014	anthracite grey	15	25	25	12
06242-065X15	bolt in steel	2	M6	14	23	0,014	light grey	15	25	25	12
06242-066X15	bolt in steel	2	M6	14	23	0,014	traffic red	15	25	25	12
06242-067X15	bolt in steel	2	M6	14	23	0,014	bright yellow	15	25	25	12
06242-08X15	bolt in steel	3	M8	19	31	0,031	anthracite grey	15	33	33	15
06242-085X15	bolt in steel	3	M8	19	31	0,031	light grey	15	33	33	15
06242-086X15	bolt in steel	3	M8	19	31	0,031	traffic red	15	33	33	15
06242-087X15	bolt in steel	3	M8	19	31	0,031	bright yellow	15	33	33	15

Order No.	Surface finish	Size	D	D2	D3	Approx. weight kg	Colour	L	D1	H	H1
06242-004X10	bolt in stainless steel	1	M4	12	19	0,010	anthracite grey	10	21	21	10
06242-0045X10	bolt in stainless steel	1	M4	12	19	0,010	light grey	10	21	21	10
06242-0046X10	bolt in stainless steel	1	M4	12	19	0,010	traffic red	10	21	21	10
06242-0047X10	bolt in stainless steel	1	M4	12	19	0,010	bright yellow	10	21	21	10
06242-005X10	bolt in stainless steel	1	M5	12	19	0,010	anthracite grey	10	21	21	10
06242-0055X10	bolt in stainless steel	1	M5	12	19	0,010	light grey	10	21	21	10
06242-0056X10	bolt in stainless steel	1	M5	12	19	0,010	traffic red	10	21	21	10
06242-0057X10	bolt in stainless steel	1	M5	12	19	0,010	bright yellow	10	21	21	10
06242-006X15	bolt in stainless steel	2	M6	14	23	0,014	anthracite grey	15	25	25	12
06242-0065X15	bolt in stainless steel	2	M6	14	23	0,014	light grey	15	25	25	12
06242-0066X15	bolt in stainless steel	2	M6	14	23	0,014	traffic red	15	25	25	12
06242-0067X15	bolt in stainless steel	2	M6	14	23	0,014	bright yellow	15	25	25	12
06242-008X15	bolt in stainless steel	3	M8	19	31	0,031	anthracite grey	15	33	33	15
06242-0085X15	bolt in stainless steel	3	M8	19	31	0,031	light grey	15	33	33	15
06242-0086X15	bolt in stainless steel	3	M8	19	31	0,031	traffic red	15	33	33	15
06242-0087X15	bolt in stainless steel	3	M8	19	31	0,031	bright yellow	15	33	33	15
