Handräder mit Zylindergriff drehbar
Artikelnummer: 06263
Produktinfo
Notera
The hub cover and the Cylindrical Revolving Grip are supplied unassembled. In order to assemble the grip, the axis must be screwed into the receiving hole.
The handwheels can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349.
Assembly example see 06262.

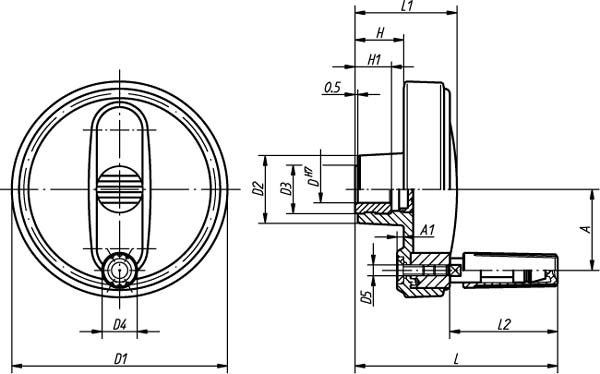

| Order No. | Surface finish | Size | D | ToleranceD | D2 | D3 | D4 | D5 | A | A1 | L | L1 | Approx. weight kg | D1 | H | H1 | L2 | B3 | T |
|---|
| 06263-108008 | hub without slot | 1 | 8 | H7 | 25 | 19 | 13 | M4 | 30 | 2,5 | 75 | 37,5 | 0,101 | 80 | 17,5 | 13 | 40 | - | - |
| 06263-108010 | hub without slot | 1 | 10 | H7 | 25 | 19 | 13 | M4 | 30 | 2,5 | 75 | 37,5 | 0,101 | 80 | 17,5 | 13 | 40 | - | - |
| 06263-108012 | hub without slot | 1 | 12 | H7 | 25 | 19 | 13 | M4 | 30 | 2,5 | 75 | 37,5 | 0,101 | 80 | 17,5 | 13 | 40 | - | - |
| 06263-210010 | hub without slot | 2 | 10 | H7 | 28 | 19 | 16 | M5 | 38 | 3 | 90 | 44 | 0,178 | 100 | 20 | 13 | 49,5 | - | - |
| 06263-210012 | hub without slot | 2 | 12 | H7 | 28 | 19 | 16 | M5 | 38 | 3 | 90 | 44 | 0,178 | 100 | 20 | 13 | 49,5 | - | - |
| 06263-312512 | hub without slot | 3 | 12 | H7 | 35 | 25 | 20 | M6 | 47,5 | 4 | 109 | 53 | 0,318 | 125 | 23,5 | 18,5 | 60 | - | - |
| 06263-312514 | hub without slot | 3 | 14 | H7 | 35 | 25 | 20 | M6 | 47,5 | 4 | 109 | 53 | 0,318 | 125 | 23,5 | 18,5 | 60 | - | - |
| 06263-312516 | hub without slot | 3 | 16 | H7 | 35 | 25 | 20 | M6 | 47,5 | 4 | 109 | 53 | 0,318 | 125 | 23,5 | 18,5 | 60 | - | - |
| 06263-416014 | hub without slot | 4 | 14 | H7 | 45 | 25 | 25 | M8 | 62 | 5,6 | 144 | 64,5 | 0,636 | 160 | 28 | 18,5 | 83,5 | - | - |
| 06263-416016 | hub without slot | 4 | 16 | H7 | 45 | 25 | 25 | M8 | 62 | 5,6 | 144 | 64,5 | 0,636 | 160 | 28 | 18,5 | 83,5 | - | - |
| Order No. | Surface finish | Size | D | ToleranceD | D2 | D3 | D4 | D5 | A | A1 | L | L1 | ToleranceHub Slot B3 | Approx. weight kg | D1 | H | H1 | L2 | B3 | T |
|---|
| 06263-10800802 | hub with slot | 1 | 8 | H7 | 25 | 19 | 13 | M4 | 30 | 2,5 | 75 | 37,5 | P9 | 0,101 | 80 | 17,5 | 13 | 40 | 2 | 9 |
| 06263-10801003 | hub with slot | 1 | 10 | H7 | 25 | 19 | 13 | M4 | 30 | 2,5 | 75 | 37,5 | P9 | 0,101 | 80 | 17,5 | 13 | 40 | 3 | 11,4 |
| 06263-10801204 | hub with slot | 1 | 12 | H7 | 25 | 19 | 13 | M4 | 30 | 2,5 | 75 | 37,5 | P9 | 0,101 | 80 | 17,5 | 13 | 40 | 4 | 13,8 |
| 06263-21001003 | hub with slot | 2 | 10 | H7 | 28 | 19 | 16 | M5 | 38 | 3 | 90 | 44 | P9 | 0,178 | 100 | 20 | 13 | 49,5 | 3 | 11,4 |
| 06263-21001204 | hub with slot | 2 | 12 | H7 | 28 | 19 | 16 | M5 | 38 | 3 | 90 | 44 | P9 | 0,178 | 100 | 20 | 13 | 49,5 | 4 | 13,8 |
| 06263-31251204 | hub with slot | 3 | 12 | H7 | 35 | 25 | 20 | M6 | 47,5 | 4 | 109 | 53 | P9 | 0,318 | 125 | 23,5 | 18,5 | 60 | 4 | 13,8 |
| 06263-31251405 | hub with slot | 3 | 14 | H7 | 35 | 25 | 20 | M6 | 47,5 | 4 | 109 | 53 | P9 | 0,318 | 125 | 23,5 | 18,5 | 60 | 5 | 16,3 |
| 06263-31251605 | hub with slot | 3 | 16 | H7 | 35 | 25 | 20 | M6 | 47,5 | 4 | 109 | 53 | P9 | 0,318 | 125 | 23,5 | 18,5 | 60 | 5 | 18,3 |
| 06263-41601405 | hub with slot | 4 | 14 | H7 | 45 | 25 | 25 | M8 | 62 | 5,6 | 144 | 64,5 | P9 | 0,636 | 160 | 28 | 18,5 | 83,5 | 5 | 16,3 |
| 06263-41601605 | hub with slot | 4 | 16 | H7 | 45 | 25 | 25 | M8 | 62 | 5,6 | 144 | 64,5 | P9 | 0,636 | 160 | 28 | 18,5 | 83,5 | 5 | 18,3 |
