Handräder mit Zylindergriff umlegbar

Artikelnummer: 06264

Handräder mit Zylindergriff umlegbar

Produktinfo

Notera
The hub cover is supplied unassembled. The handwheels can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349. Assembly example see 06262.

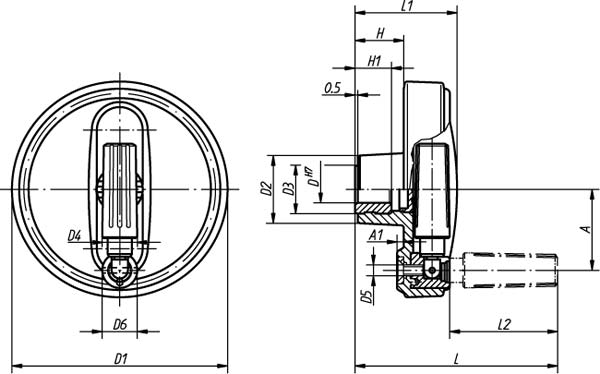

Order No.Surface finishSizeDToleranceDD2D3D4D5D6AA1LL1Approx. weight kgD1HH1L2B3T
06264-108008hub without slot18H7251913M413302,57537,50,1008017,51340--
06264-108010hub without slot110H7251913M413302,57537,50,1008017,51340--
06264-108012hub without slot112H7251913M413302,57537,50,1008017,51340--
06264-210010hub without slot210H7281916M51638390440,179100201349--
06264-210012hub without slot212H7281916M51638390440,179100201349--
06264-312512hub without slot312H7352520M62047,54109530,32812523,518,559,5--
06264-312514hub without slot314H7352520M62047,54109530,32812523,518,559,5--
06264-312516hub without slot316H7352520M62047,54109530,32812523,518,559,5--
06264-416014hub without slot414H7452525M826625,614464,50,6511602818,583,5--
06264-416016hub without slot416H7452525M826625,614464,50,6511602818,583,5--
Order No.Surface finishSizeDToleranceDD2D3D4D5D6AA1LL1Approx. weight kgToleranceHub Slot B3D1HH1L2B3T
06264-10800802hub with slot18H7251913M413302,57537,50,100P98017,5134029
06264-10801003hub with slot110H7251913M413302,57537,50,100P98017,51340311,4
06264-10801204hub with slot112H7251913M413302,57537,50,100P98017,51340413,8
06264-21001003hub with slot210H7281916M51638390440,179P9100201349311,4
06264-21001204hub with slot212H7281916M51638390440,179P9100201349413,8
06264-31251204hub with slot312H7352520M62047,54109530,328P912523,518,559,5413,8
06264-31251405hub with slot314H7352520M62047,54109530,328P912523,518,559,5516,3
06264-31251605hub with slot316H7352520M62047,54109530,328P912523,518,559,5518,3
06264-41601405hub with slot414H7452525M826625,614464,50,651P91602818,583,5516,3
06264-41601605hub with slot416H7452525M826625,614464,50,651P91602818,583,5518,3
