Handräder mit Sicherheits-Zylindergriff

Artikelnummer: 06265

Produktinfo

Notera
The hub cover is supplied unassembled. The handwheels can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349. Two steps have to be executed to bring the Cylindrical Safety Grip into operating position: - Swivel the grip around the axis of rotation until it stops (90°). - Press the grip in axial direction into locking position. The pressed-in position is the most comfortable position to crank. The grip returns automatically after letting go. Assembly example see 06262.

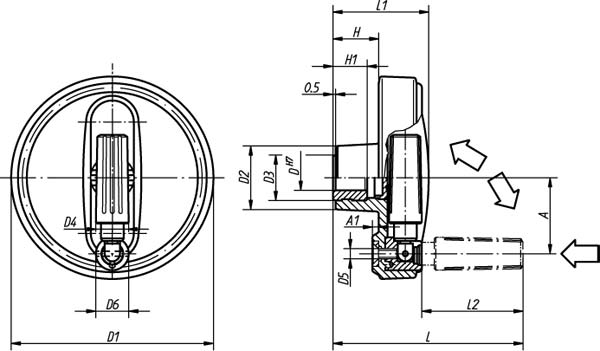

Order No.	Surface finish	Size	D	ToleranceD	D2	D3	D4	D5	D6	A	A1	L	L1	Approx. weight kg	B3	T	D1	H	H1	L2
06265-108008	hub without slot	1	8	H7	25	19	13	M4	13	30	2,5	73	37,5	0,100	-	-	80	17,5	13	38
06265-108010	hub without slot	1	10	H7	25	19	13	M4	13	30	2,5	73	37,5	0,100	-	-	80	17,5	13	38
06265-108012	hub without slot	1	12	H7	25	19	13	M4	13	30	2,5	73	37,5	0,100	-	-	80	17,5	13	38
06265-210010	hub without slot	2	10	H7	28	19	16	M5	16	38	3	88,5	44	0,179	-	-	100	20	13	47,5
06265-210012	hub without slot	2	12	H7	28	19	16	M5	16	38	3	88,5	44	0,179	-	-	100	20	13	47,5
06265-312512	hub without slot	3	12	H7	35	25	20	M6	20	47,5	4	108	53	0,328	-	-	125	23,5	18,5	58,5
06265-312514	hub without slot	3	14	H7	35	25	20	M6	20	47,5	4	108	53	0,328	-	-	125	23,5	18,5	58,5
06265-312516	hub without slot	3	16	H7	35	25	20	M6	20	47,5	4	108	53	0,328	-	-	125	23,5	18,5	58,5
06265-416014	hub without slot	4	14	H7	45	25	25	M8	26	62	5,6	142,5	64,5	0,651	-	-	160	28	18,5	82
06265-416016	hub without slot	4	16	H7	45	25	25	M8	26	62	5,6	142,5	64,5	0,651	-	-	160	28	18,5	82

Order No.	Surface finish	Size	D	ToleranceD	D2	D3	D4	D5	D6	A	A1	L	L1	ToleranceHub Slot B3	Approx. weight kg	B3	T	D1	H	H1	L2
06265-10800802	hub with slot	1	8	H7	25	19	13	M4	13	30	2,5	73	37,5	P9	0,100	2	9	80	17,5	13	38
06265-10801003	hub with slot	1	10	H7	25	19	13	M4	13	30	2,5	73	37,5	P9	0,100	3	11,4	80	17,5	13	38
06265-10801204	hub with slot	1	12	H7	25	19	13	M4	13	30	2,5	73	37,5	P9	0,100	4	13,8	80	17,5	13	38
06265-21001003	hub with slot	2	10	H7	28	19	16	M5	16	38	3	88,5	44	P9	0,179	3	11,4	100	20	13	47,5
06265-21001204	hub with slot	2	12	H7	28	19	16	M5	16	38	3	88,5	44	P9	0,179	4	13,8	100	20	13	47,5
06265-31251204	hub with slot	3	12	H7	35	25	20	M6	20	47,5	4	108	53	P9	0,328	4	13,8	125	23,5	18,5	58,5
06265-31251405	hub with slot	3	14	H7	35	25	20	M6	20	47,5	4	108	53	P9	0,328	5	16,3	125	23,5	18,5	58,5
06265-31251605	hub with slot	3	16	H7	35	25	20	M6	20	47,5	4	108	53	P9	0,328	5	18,3	125	23,5	18,5	58,5
06265-41601405	hub with slot	4	14	H7	45	25	25	M8	26	62	5,6	142,5	64,5	P9	0,651	5	16,3	160	28	18,5	82
06265-41601605	hub with slot	4	16	H7	45	25	25	M8	26	62	5,6	142,5	64,5	P9	0,651	5	18,3	160	28	18,5	82
