Handkurbeln mit Zylindergriff umlegbar

Artikelnummer: 06500_1

Handkurbeln mit Zylindergriff umlegbar

Produktinfo

Notera
The hub cover is supplied unassembled. The Crank Handles can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349.

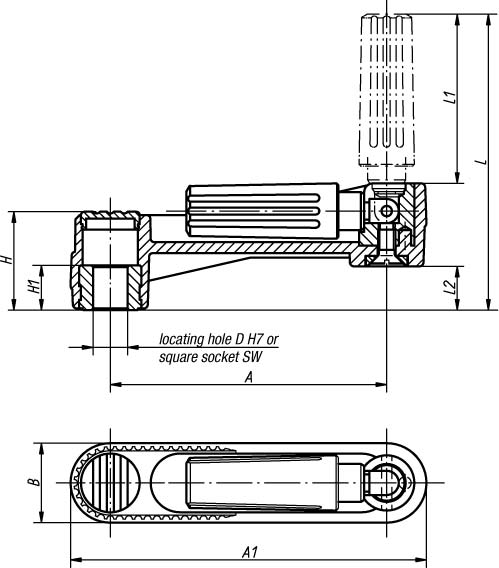

Order No.	Surface finish	Size	A	A1	B	D	L	L1	Approx. weight kg	ToleranceD	H	H1	L2
06500-1108	locating hole without slot	1	80	104	24	8	85,5	49	0,100	H7	29	13	13
06500-1110	locating hole without slot	1	80	104	24	10	85,5	49	0,100	H7	29	13	13
06500-1210	locating hole without slot	2	100	129	29	10	105	59,5	0,190	H7	36	13	16
06500-1212	locating hole without slot	2	100	129	29	12	105	59,5	0,190	H7	36	13	16
06500-1312	locating hole without slot	3	125	161	36	12	140	83,5	0,370	H7	44	18,5	19,5
06500-1314	locating hole without slot	3	125	161	36	14	140	83,5	0,370	H7	44	18,5	19,5

Order No.	Surface finish	Size	A	A1	B	D	L	L1	Approx. weight kg	ToleranceD	ToleranceHub Slot B3	H	H1	L2	B3	T
06500-110802	locating hole with slot	1	80	104	24	8	85,5	49	0,100	H7	P9	29	13	13	2	9
06500-111003	locating hole with slot	1	80	104	24	10	85,5	49	0,100	H7	P9	29	13	13	3	11,4
06500-121003	locating hole with slot	2	100	129	29	10	105	59,5	0,190	H7	P9	36	13	16	3	11,4
06500-121204	locating hole with slot	2	100	129	29	12	105	59,5	0,190	H7	P9	36	13	16	4	13,8
06500-131204	locating hole with slot	3	125	161	36	12	140	83,5	0,370	H7	P9	44	18,5	19,5	4	13,8
06500-131405	locating hole with slot	3	125	161	36	14	140	83,5	0,370	H7	P9	44	18,5	19,5	5	16,3

Order No.	Surface finish	Size	A	A1	B	L	L1	Approx. weight kg	SW	H	H1	L2
06500-2108	square socket	1	80	104	24	85,5	49	0,100	8	29	13	13
06500-2110	square socket	1	80	104	24	85,5	49	0,100	10	29	13	13
06500-2210	square socket	2	100	129	29	105	59,5	0,190	10	36	13	16
06500-2212	square socket	2	100	129	29	105	59,5	0,190	12	36	13	16
06500-2312	square socket	3	125	161	36	140	83,5	0,370	12	44	18,5	19,5
06500-2314	square socket	3	125	161	36	140	83,5	0,370	14	44	18,5	19,5
