Handkurbeln mit Zylindergriff drehbar

Artikelnummer: 06500

Produktinfo

Notera
The hub cover and the Cylindrical Revolving Grip are supplied unassembled. In order to assemble the grip, the axis must be screwed into the receiving hole. The Crank Handles can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349.

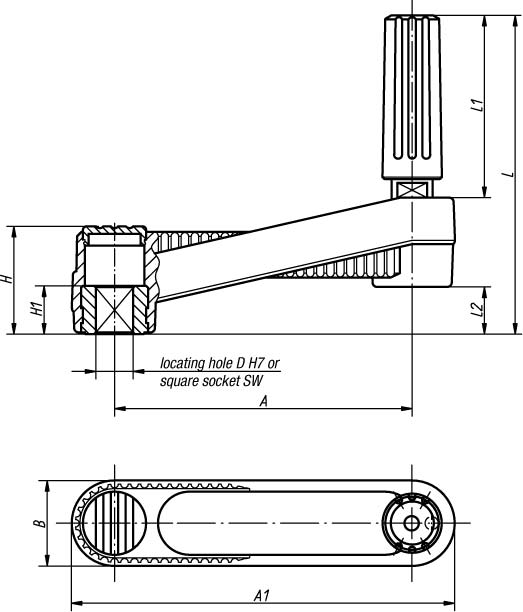

Order No.	Surface finish	Size	A	A1	B	D	L	L1	Approx. weight kg	ToleranceD	H	H1	L2
06500-3108	locating hole without slot	1	80	104	24	8	85,5	49	0,110	H7	29	13	13
06500-3110	locating hole without slot	1	80	104	24	10	85,5	49	0,110	H7	29	13	13
06500-3210	locating hole without slot	2	100	129	29	10	105	59,5	0,210	H7	36	13	16
06500-3212	locating hole without slot	2	100	129	29	12	105	59,5	0,210	H7	36	13	16
06500-3312	locating hole without slot	3	125	161	36	12	140	83,5	0,405	H7	44	18,5	19,5
06500-3314	locating hole without slot	3	125	161	36	14	140	83,5	0,405	H7	44	18,5	19,5

Order No.	Surface finish	Size	A	A1	B	D	L	L1	Approx. weight kg	ToleranceD	ToleranceHub Slot B3	H	H1	L2	B3	T
06500-310802	locating hole with slot	1	80	104	24	8	85,5	49	0,110	H7	P9	29	13	13	2	9
06500-311003	locating hole with slot	1	80	104	24	10	85,5	49	0,110	H7	P9	29	13	13	3	11,4
06500-321003	locating hole with slot	2	100	129	29	10	105	59,5	0,210	H7	P9	36	13	16	3	11,4
06500-321204	locating hole with slot	2	100	129	29	12	105	59,5	0,210	H7	P9	36	13	16	4	13,8
06500-331204	locating hole with slot	3	125	161	36	12	140	83,5	0,405	H7	P9	44	18,5	19,5	4	13,8
06500-331405	locating hole with slot	3	125	161	36	14	140	83,5	0,405	H7	P9	44	18,5	19,5	5	16,3

Order No.	Surface finish	Size	A	A1	B	L	L1	Approx. weight kg	SW	H	H1	L2
06500-4108	square socket	1	80	104	24	85,5	49	0,110	8	29	13	13
06500-4110	square socket	1	80	104	24	85,5	49	0,110	10	29	13	13
06500-4210	square socket	2	100	129	29	105	59,5	0,210	10	36	13	16
06500-4212	square socket	2	100	129	29	105	59,5	0,210	12	36	13	16
06500-4312	square socket	3	125	161	36	140	83,5	0,405	12	44	18,5	19,5
06500-4314	square socket	3	125	161	36	140	83,5	0,405	14	44	18,5	19,5
