Handkurbeln mit Sicherheits-Zylindergriff

Artikelnummer: 06502

Produktinfo

Notera

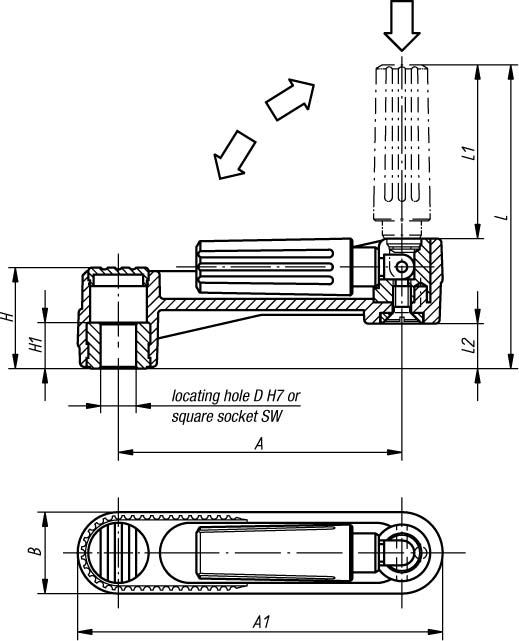

The hub cover is supplied unassembled. The Crank Handles can be secured axially to the shaft via feather connection by cross-pinning or with a socket head screw to DIN 6912 and a washer to DIN 7349. Two steps have to be executed to bring the Cylindrical Safety Grip into operating position: - Swivel the grip around the axis of rotation until it stops (90°). - Press the grip in axial direction into locking position. The pressed-in position is the most comfortable position to crank. The grip returns automatically after letting go.

Order No.	Size	A	A1	B	D	L	L1	Approx. weight kg	ToleranceD	Surface finish	H	H1	L2
06502-1108	1	80	104	24	8	84	47,5	0,100	H7	locating hole without slot	29	13	13
06502-1110	1	80	104	24	10	84	47,5	0,100	H7	locating hole without slot	29	13	13
06502-1210	2	100	129	29	10	104	58,5	0,190	H7	locating hole without slot	36	13	16
06502-1212	2	100	129	29	12	104	58,5	0,190	H7	locating hole without slot	36	13	16
06502-1312	3	125	161	36	12	138,5	82	0,370	H7	locating hole without slot	44	18,5	19,5
06502-1314	3	125	161	36	14	138,5	82	0,370	H7	locating hole without slot	44	18,5	19,5

Order No.	Size	A	A1	B	D	L	L1	Approx. weight kg	ToleranceD	ToleranceHub Slot B3	Surface finish	B3	T	H	H1	L2
06502-110802	1	80	104	24	8	84	47,5	0,100	H7	P9	locating hole with slot	2	9	29	13	13
06502-111003	1	80	104	24	10	84	47,5	0,100	H7	P9	locating hole with slot	3	11,4	29	13	13
06502-121003	2	100	129	29	10	104	58,5	0,190	H7	P9	locating hole with slot	3	11,4	36	13	16
06502-121204	2	100	129	29	12	104	58,5	0,190	H7	P9	locating hole with slot	4	13,8	36	13	16
06502-131204	3	125	161	36	12	138,5	82	0,370	H7	P9	locating hole with slot	4	13,8	44	18,5	19,5
06502-131405	3	125	161	36	14	138,5	82	0,370	H7	P9	locating hole with slot	5	16,3	44	18,5	19,5

Order No.	Size	A	A1	B	L	L1	Approx. weight kg	SW	Surface finish	H	H1	L2
06502-2108	1	80	104	24	84	47,5	0,100	8	square socket	29	13	13
06502-2110	1	80	104	24	84	47,5	0,100	10	square socket	29	13	13
06502-2210	2	100	129	29	104	58,5	0,190	10	square socket	36	13	16
06502-2212	2	100	129	29	104	58,5	0,190	12	square socket	36	13	16
06502-2312	3	125	161	36	138,5	82	0,370	12	square socket	44	18,5	19,5
06502-2314	3	125	161	36	138,5	82	0,370	14	square socket	44	18,5	19,5
