Sterngriffe ähnlich DIN 6336 Stahlteile Nirosta

Artikelnummer: 06212

Produktinfo

Material
Black thermoplastic, bush and threaded bolt in stainless steel 1.4305

Yta
Bush and threaded bolt natural finish

Notera
DELTA Add the desired grip cap colour here; no colour code is required with black grip caps

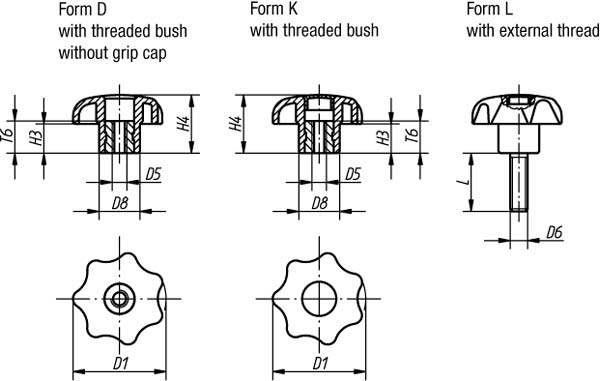

Order No.	D5	D8	H3	H4	T6	Approx. weight g	Form	D1
06212-505	M5	12	8	16	10	8	D	25
06212-506	M6	14	10	20	10	10	D	32
06212-508	M8	18	13	25	14	24	D	40
06212-510	M10	22	17	32	14	40	D	50
06212-512	M12	26	21	40	18	80	D	63

Order No.	D5	D8	H3	H4	T6	Approx. weight g	Colour	Form	D1
06212-205	M5	12	8	16	10	8	black	K	25
06212-2055	M5	12	8	16	10	8	light grey	K	25
06212-2056	M5	12	8	16	10	8	traffic red	K	25
06212-2057	M5	12	8	16	10	8	bright yellow	K	25
06212-206	M6	14	10	20	10	10	black	K	32
06212-2065	M6	14	10	20	10	10	light grey	K	32
06212-2066	M6	14	10	20	10	10	traffic red	K	32
06212-2067	M6	14	10	20	10	10	bright yellow	K	32
06212-208	M8	18	13	25	14	24	black	K	40
06212-2085	M8	18	13	25	14	24	light grey	K	40
06212-2086	M8	18	13	25	14	24	traffic red	K	40
06212-2087	M8	18	13	25	14	24	bright yellow	K	40
06212-210	M10	22	17	32	14	40	black	K	50
06212-2105	M10	22	17	32	14	40	light grey	K	50
06212-2106	M10	22	17	32	14	40	traffic red	K	50
06212-2107	M10	22	17	32	14	40	bright yellow	K	50
06212-212	M12	26	21	40	18	80	black	K	63
06212-2125	M12	26	21	40	18	80	light grey	K	63
06212-2126	M12	26	21	40	18	80	traffic red	K	63
06212-2127	M12	26	21	40	18	80	bright yellow	K	63

Order No.	D6	D8	H3	H4	L	Colour	Form	D1
06212-405X15	M5	12	8	16	15	black	L	25
06212-4055X15	M5	12	8	16	15	light grey	L	25
06212-4056X15	M5	12	8	16	15	traffic red	L	25
06212-4057X15	M5	12	8	16	15	bright yellow	L	25
06212-405X20	M5	12	8	16	20	black	L	25
06212-4055X20	M5	12	8	16	20	light grey	L	25
06212-4056X20	M5	12	8	16	20	traffic red	L	25
06212-4057X20	M5	12	8	16	20	bright yellow	L	25
06212-406X20	M6	14	10	20	20	black	L	32
06212-4065X20	M6	14	10	20	20	light grey	L	32
06212-4066X20	M6	14	10	20	20	traffic red	L	32
06212-4067X20	M6	14	10	20	20	bright yellow	L	32
06212-406X30	M6	14	10	20	30	black	L	32
06212-4065X30	M6	14	10	20	30	light grey	L	32
06212-4066X30	M6	14	10	20	30	traffic red	L	32
06212-4067X30	M6	14	10	20	30	bright yellow	L	32
06212-408X15	M8	18	13	25	15	black	L	40
06212-4085X15	M8	18	13	25	15	light grey	L	40
06212-4086X15	M8	18	13	25	15	traffic red	L	40
06212-4087X15	M8	18	13	25	15	bright yellow	L	40
06212-408X20	M8	18	13	25	20	black	L	40
06212-4085X20	M8	18	13	25	20	light grey	L	40
06212-4086X20	M8	18	13	25	20	traffic red	L	40
06212-4087X20	M8	18	13	25	20	bright yellow	L	40
06212-408X25	M8	18	13	25	25	black	L	40
06212-4085X25	M8	18	13	25	25	light grey	L	40
06212-4086X25	M8	18	13	25	25	traffic red	L	40
06212-4087X25	M8	18	13	25	25	bright yellow	L	40
06212-408X30	M8	18	13	25	30	black	L	40
06212-4085X30	M8	18	13	25	30	light grey	L	40
06212-4086X30	M8	18	13	25	30	traffic red	L	40
06212-4087X30	M8	18	13	25	30	bright yellow	L	40
06212-408X40	M8	18	13	25	40	black	L	40
06212-4085X40	M8	18	13	25	40	light grey	L	40
06212-4086X40	M8	18	13	25	40	traffic red	L	40
06212-4087X40	M8	18	13	25	40	bright yellow	L	40
06212-408X60	M8	18	13	25	60	black	L	40
06212-4085X60	M8	18	13	25	60	light grey	L	40
06212-4086X60	M8	18	13	25	60	traffic red	L	40
06212-4087X60	M8	18	13	25	60	bright yellow	L	40
06212-410X25	M10	22	17	32	25	black	L	50
06212-4105X25	M10	22	17	32	25	light grey	L	50
06212-4106X25	M10	22	17	32	25	traffic red	L	50
06212-4107X25	M10	22	17	32	25	bright yellow	L	50
06212-410X30	M10	22	17	32	30	black	L	50
06212-4105X30	M10	22	17	32	30	light grey	L	50
06212-4106X30	M10	22	17	32	30	traffic red	L	50
06212-4107X30	M10	22	17	32	30	bright yellow	L	50
06212-410X40	M10	22	17	32	40	black	L	50
06212-4105X40	M10	22	17	32	40	light grey	L	50
06212-4106X40	M10	22	17	32	40	traffic red	L	50
06212-4107X40	M10	22	17	32	40	bright yellow	L	50
06212-410X50	M10	22	17	32	50	black	L	50
06212-4105X50	M10	22	17	32	50	light grey	L	50
06212-4106X50	M10	22	17	32	50	traffic red	L	50
06212-4107X50	M10	22	17	32	50	bright yellow	L	50
06212-410X60	M10	22	17	32	60	black	L	50
06212-4105X60	M10	22	17	32	60	light grey	L	50
06212-4106X60	M10	22	17	32	60	traffic red	L	50
06212-4107X60	M10	22	17	32	60	bright yellow	L	50
