Handräder DIN 950 aus Aluminium

Artikelnummer: 06273

Handräder DIN 950 aus Aluminium

Produktinfo

Material
Handwheel and machine handle in aluminium; axle part in steel, black oxide finish

Yta
Wheel rim turned and polished, centre bore is concentric and parallel with outside of handle to IT 12.

Order No.Surface finishD3L1L3B3 line 2T line 1Number of spokesApprox. weight kgToleranceD2ToleranceHub Slot D2 B3D1D2 line 1D2 line 2B3 line 1T line 2
06273-0080X10hub without slot241629-11,430,125H7-8010-3-
06273-0080X12hub without slot2416294-30,125H7-80-12-13,8
06273-0100X10hub without slot261733-11,430,220H7-10010-3-
06273-0100X12hub without slot2617334-30,220H7-100-12-13,8
06273-0125X12hub without slot281836-13,830,305H7-12512-4-
06273-0125X14hub without slot2818365-30,305H7-125-14-16,3
06273-0140X14hub without slot301939-16,330,400H7-14014-5-
06273-0140X16hub without slot3019395-30,400H7-140-16-18,3
06273-0160X14hub without slot322040-16,330,530H7-16014-5-
06273-0160X16hub without slot3220405-30,530H7-160-16-18,3
06273-0180X16hub without slot352243-18,330,675H7-18016-5-
06273-0180X18hub without slot3522436-30,675H7-180-18-20,8
06273-0200X18hub without slot382445-20,830,900H7-20018-6-
06273-0200X22hub without slot3824456-30,900H7-200-22-24,8
06273-0250X22hub without slot452850-24,851,570H7-25022-6-
06273-0250X26hub without slot4528508-51,570H7-250-26-29,3
06273-0315X26hub without slot533356-29,352,490H7-31526-8-
06273-0315X30hub without slot5333568-52,490H7-315-30-33,3
06273-0400X30hub without slot653863-33,354,100H7-40030-8-
06273-0400X34hub without slot65386310-54,100H7-400-34-37,3
06273-0500X34hub without slot784572-37,356,130H7-50034-10-
06273-0500X40hub without slot78457212-56,130H7-500-40-43,3
06273-1080X10hub with slot241629-11,430,125H7P98010-3-
06273-1080X12hub with slot2416294-30,125H7P980-12-13,8
06273-1100X10hub with slot261733-11,430,220H7P910010-3-
06273-1100X12hub with slot2617334-30,220H7P9100-12-13,8
06273-1125X12hub with slot281836-13,830,305H7P912512-4-
06273-1125X14hub with slot2818365-30,305H7P9125-14-16,3
06273-1140X14hub with slot301939-16,330,400H7P914014-5-
06273-1140X16hub with slot3019395-30,400H7P9140-16-18,3
06273-1160X14hub with slot322040-16,330,530H7P916014-5-
06273-1160X16hub with slot3220405-30,530H7P9160-16-18,3
06273-1180X16hub with slot352243-18,330,675H7P918016-5-
06273-1180X18hub with slot3522436-30,675H7P9180-18-20,8
06273-1200X18hub with slot382445-20,830,900H7P920018-6-
06273-1200X22hub with slot3824456-30,900H7P9200-22-24,8
06273-1250X22hub with slot452850-24,851,570H7P925022-6-
06273-1250X26hub with slot4528508-51,570H7P9250-26-29,3
06273-1315X26hub with slot533356-29,352,490H7P931526-8-
06273-1315X30hub with slot5333568-52,490H7P9315-30-33,3
06273-1400X30hub with slot653863-33,354,100H7P940030-8-
06273-1400X34hub with slot65386310-54,100H7P9400-34-37,3
06273-1500X34hub with slot784572-37,356,130H7P950034-10-
06273-1500X40hub with slot78457212-56,130H7P9500-40-43,3
Order No.Surface finishD3L1L3B3 line 2T line 1Number of spokesApprox. weight kgfixed machine handle DIN 39 Form EToleranceD2ToleranceHub Slot D2 B3D1D2 line 1D2 line 2B3 line 1T line 2
06273-2080X10hub without slot241629-11,430,145ø16 x M6 x 50H7-8010-3-
06273-2080X12hub without slot2416294-30,145ø16 x M6 x 50H7-80-12-13,8
06273-2100X10hub without slot261733-11,430,240ø16 x M6 x 50H7-10010-3-
06273-2100X12hub without slot2617334-30,240ø16 x M6 x 50H7-100-12-13,8
06273-2125X12hub without slot281836-13,830,340ø20 x M8 x 64H7-12512-4-
06273-2125X14hub without slot2818365-30,340ø20 x M8 x 64H7-125-14-16,3
06273-2140X14hub without slot301939-16,330,440ø20 x M8 x 64H7-14014-5-
06273-2140X16hub without slot3019395-30,440ø20 x M8 x 64H7-140-16-18,3
06273-2160X14hub without slot322040-16,330,610ø25 x M10 x 80H7-16014-5-
06273-2160X16hub without slot3220405-30,610ø25 x M10 x 80H7-160-16-18,3
06273-2180X16hub without slot352243-18,330,755ø25 x M10 x 80H7-18016-5-
06273-2180X18hub without slot3522436-30,755ø25 x M10 x 80H7-180-18-20,8
06273-2200X18hub without slot382445-20,830,980ø25 x M10 x 80H7-20018-6-
06273-2200X22hub without slot3824456-30,980ø25 x M10 x 80H7-200-22-24,8
06273-2250X22hub without slot452850-24,851,705ø32 x M12 x 100H7-25022-6-
06273-2250X26hub without slot4528508-51,705ø32 x M12 x 100H7-250-26-29,3
06273-2315X26hub without slot533356-29,352,625ø32 x M12 x 100H7-31526-8-
06273-2315X30hub without slot5333568-52,625ø32 x M12 x 100H7-315-30-33,3
06273-2400X30hub without slot653863-33,354,310ø36 x M16 x 112H7-40030-8-
06273-2400X34hub without slot65386310-54,310ø36 x M16 x 112H7-400-34-37,3
06273-2500X34hub without slot784572-37,356,340ø36 x M16 x 112H7-50034-10-
06273-2500X40hub without slot78457212-56,340ø36 x M16 x 112H7-500-40-43,3
06273-3080X10hub with slot241629-11,430,145ø16 x M6 x 50H7P98010-3-
06273-3080X12hub with slot2416294-30,145ø16 x M6 x 50H7P980-12-13,8
06273-3100X10hub with slot261733-11,430,240ø16 x M6 x 50H7P910010-3-
06273-3100X12hub with slot2617334-30,240ø16 x M6 x 50H7P9100-12-13,8
06273-3125X12hub with slot281836-13,830,340ø20 x M8 x 64H7P912512-4-
06273-3125X14hub with slot2818365-30,340ø20 x M8 x 64H7P9125-14-16,3
06273-3140X14hub with slot301939-16,330,440ø20 x M8 x 64H7P914014-5-
06273-3140X16hub with slot3019395-30,440ø20 x M8 x 64H7P9140-16-18,3
06273-3160X14hub with slot322040-16,330,610ø25 x M10 x 80H7P916014-5-
06273-3160X16hub with slot3220405-30,610ø25 x M10 x 80H7P9160-16-18,3
06273-3180X16hub with slot352243-18,330,755ø25 x M10 x 80H7P918016-5-
06273-3180X18hub with slot3522436-30,755ø25 x M10 x 80H7P9180-18-20,8
06273-3200X18hub with slot382445-20,830,980ø25 x M10 x 80H7P920018-6-
06273-3200X22hub with slot3824456-30,980ø25 x M10 x 80H7P9200-22-24,8
06273-3250X22hub with slot452850-24,851,705ø32 x M12 x 100H7P925022-6-
06273-3250X26hub with slot4528508-51,705ø32 x M12 x 100H7P9250-26-29,3
06273-3315X26hub with slot533356-29,352,625ø32 x M12 x 100H7P931526-8-
06273-3315X30hub with slot5333568-52,625ø32 x M12 x 100H7P9315-30-33,3
06273-3400X30hub with slot653863-33,354,310ø36 x M16 x 112H7P940030-8-
06273-3400X34hub with slot65386310-54,310ø36 x M16 x 112H7P9400-34-37,3
06273-3500X34hub with slot784572-37,356,340ø36 x M16 x 112H7P950034-10-
06273-3500X40hub with slot78457212-56,340ø36 x M16 x 112H7P9500-40-43,3
Order No.Surface finishD3L1L3B3 line 2T line 1Number of spokesApprox. weight kgrevolving machine handle DIN 98 Form EToleranceD2ToleranceHub Slot D2 B3D1D2 line 1D2 line 2B3 line 1T line 2
06273-4080X10hub without slot241629-11,430,145ø16 x M6 x 54,5H7-8010-3-
06273-4080X12hub without slot2416294-30,145ø16 x M6 x 54,5H7-80-12-13,8
06273-4100X10hub without slot261733-11,430,240ø16 x M6 x 54,5H7-10010-3-
06273-4100X12hub without slot2617334-30,240ø16 x M6 x 54,5H7-100-12-13,8
06273-4125X12hub without slot281836-13,830,340ø20 x M8 x 67H7-12512-4-
06273-4125X14hub without slot2818365-30,340ø20 x M8 x 67H7-125-14-16,3
06273-4140X14hub without slot301939-16,330,440ø20 x M8 x 67H7-14014-5-
06273-4140X16hub without slot3019395-30,440ø20 x M8 x 67H7-140-16-18,3
06273-4160X14hub without slot322040-16,330,610ø25 x M10 x 83H7-16014-5-
06273-4160X16hub without slot3220405-30,610ø25 x M10 x 83H7-160-16-18,3
06273-4180X16hub without slot352243-18,330,755ø25 x M10 x 83H7-18016-5-
06273-4180X18hub without slot3522436-30,755ø25 x M10 x 83H7-180-18-20,8
06273-4200X18hub without slot382445-20,830,980ø25 x M10 x 83H7-20018-6-
06273-4200X22hub without slot3824456-30,980ø25 x M10 x 83H7-200-22-24,8
06273-4250X22hub without slot452850-24,851,705ø32 x M12 x 105,5H7-25022-6-
06273-4250X26hub without slot4528508-51,705ø32 x M12 x 105,5H7-250-26-29,3
06273-4315X26hub without slot533356-29,352,625ø32 x M12 x 105,5H7-31526-8-
06273-4315X30hub without slot5333568-52,625ø32 x M12 x 105,5H7-315-30-33,3
06273-4400X30hub without slot653863-33,354,310ø36 x M16 x 117H7-40030-8-
06273-4400X34hub without slot65386310-54,310ø36 x M16 x 117H7-400-34-37,3
06273-4500X34hub without slot784572-37,356,340ø36 x M16 x 117H7-50034-10-
06273-4500X40hub without slot78457212-56,340ø36 x M16 x 117H7-500-40-43,3
06273-5080X10hub with slot241629-11,430,145ø16 x M6 x 54,5H7P98010-3-
06273-5080X12hub with slot2416294-30,145ø16 x M6 x 54,5H7P980-12-13,8
06273-5100X10hub with slot261733-11,430,240ø16 x M6 x 54,5H7P910010-3-
06273-5100X12hub with slot2617334-30,240ø16 x M6 x 54,5H7P9100-12-13,8
06273-5125X12hub with slot281836-13,830,340ø20 x M8 x 67H7P912512-4-
06273-5125X14hub with slot2818365-30,340ø20 x M8 x 67H7P9125-14-16,3
06273-5140X14hub with slot301939-16,330,440ø20 x M8 x 67H7P914014-5-
06273-5140X16hub with slot3019395-30,440ø20 x M8 x 67H7P9140-16-18,3
06273-5160X14hub with slot322040-16,330,610ø25 x M10 x 83H7P916014-5-
06273-5160X16hub with slot3220405-30,610ø25 x M10 x 83H7P9160-16-18,3
06273-5180X16hub with slot352243-18,330,755ø25 x M10 x 83H7P918016-5-
06273-5180X18hub with slot3522436-30,755ø25 x M10 x 83H7P9180-18-20,8
06273-5200X18hub with slot382445-20,830,980ø25 x M10 x 83H7P920018-6-
06273-5200X22hub with slot3824456-30,980ø25 x M10 x 83H7P9200-22-24,8
06273-5250X22hub with slot452850-24,851,705ø32 x M12 x 105,5H7P925022-6-
06273-5250X26hub with slot4528508-51,705ø32 x M12 x 105,5H7P9250-26-29,3
06273-5315X26hub with slot533356-29,352,625ø32 x M12 x 105,5H7P931526-8-
06273-5315X30hub with slot5333568-52,625ø32 x M12 x 105,5H7P9315-30-33,3
06273-5400X30hub with slot653863-33,354,310ø36 x M16 x 117H7P940030-8-
06273-5400X34hub with slot65386310-54,310ø36 x M16 x 117H7P9400-34-37,3
06273-5500X34hub with slot784572-37,356,340ø36 x M16 x 117H7P950034-10-
06273-5500X40hub with slot78457212-56,340ø36 x M16 x 117H7P9500-40-43,3

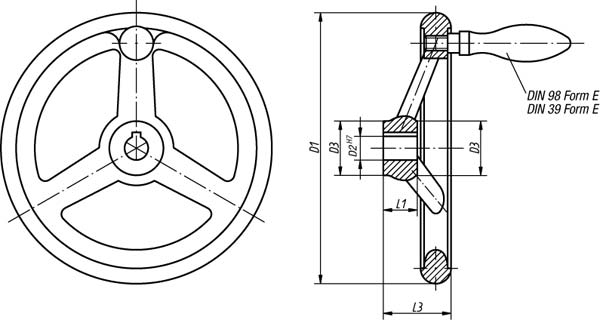

Konstruktion
