Scheibenhandräder aus Aluminium

Artikelnummer: 06275

Scheibenhandräder aus Aluminium

Produktinfo

Material
Disc handwheel in aluminium; cylindrical grip in black duroplastic PF 31-DIN 7708, axle part in galvanized steel

Yta
Wheel rim turned and polished, centre bore is concentric and parallel with outside of handle to IT 12.

Order No.Surface finishD3L1L3B3 line 2T line 1Approx. weight kgToleranceD2ToleranceHub Slot D2 B3D1D2 line 1D2 line 2B3 line 1T line 2
06275-0080X10hub without slot251631-11,40,175H7-8010-3-
06275-0080X12hub without slot2516314-0,175H7-80-12-13,8
06275-0100X10hub without slot311734-11,40,270H7-10010-3-
06275-0100X12hub without slot3117344-0,270H7-100-12-13,8
06275-0125X12hub without slot301837-13,80,490H7-12512-4-
06275-0125X14hub without slot3018375-0,490H7-125-14-16,3
06275-0140X14hub without slot341934-16,30,510H7-14014-5-
06275-0140X15hub without slot3419345-0,510H7-140-15-17,3
06275-0160X15hub without slot402040-17,30,780H7-16015-5-
06275-0160X16hub without slot4020405-0,780H7-160-16-18,3
06275-0200X18hub without slot502446-20,81,340H7-20018-6-
06275-0200X20hub without slot5024466-1,340H7-200-20-22,8
06275-0250X22hub without slot502849-24,81,950H7-25022-6-
06275-0250X24hub without slot5028498-1,950H7-250-24-27,3
06275-1080X10hub with slot251631-11,40,175H7P98010-3-
06275-1080X12hub with slot2516314-0,175H7P980-12-13,8
06275-1100X10hub with slot311734-11,40,270H7P910010-3-
06275-1100X12hub with slot3117344-0,270H7P9100-12-13,8
06275-1125X12hub with slot301837-13,80,490H7P912512-4-
06275-1125X14hub with slot3018375-0,490H7P9125-14-16,3
06275-1140X14hub with slot341934-16,30,510H7P914014-5-
06275-1140X15hub with slot3419345-0,510H7P9140-15-17,3
06275-1160X15hub with slot402040-17,30,780H7P916015-5-
06275-1160X16hub with slot4020405-0,780H7P9160-16-18,3
06275-1200X18hub with slot502446-20,81,340H7P920018-6-
06275-1200X20hub with slot5024466-1,340H7P9200-20-22,8
06275-1250X22hub with slot502849-24,81,950H7P925022-6-
06275-1250X24hub with slot5028498-1,950H7P9250-24-27,3
Order No.Surface finishD3L1L3B3 line 2T line 1Approx. weight kgFixed cylindrical gripToleranceD2ToleranceHub Slot D2 B3D1D2 line 1D2 line 2B3 line 1T line 2
06275-2080X10hub without slot251631-11,40,195ø18 x M6 x 40H7-8010-3-
06275-2080X12hub without slot2516314-0,195ø18 x M6 x 40H7-80-12-13,8
06275-2100X10hub without slot311734-11,40,290ø18 x M6 x 40H7-10010-3-
06275-2100X12hub without slot3117344-0,290ø18 x M6 x 40H7-100-12-13,8
06275-2125X12hub without slot301837-13,80,530ø21 x M8 x 50H7-12512-4-
06275-2125X14hub without slot3018375-0,530ø21 x M8 x 50H7-125-14-16,3
06275-2140X14hub without slot341934-16,30,590ø21 x M8 x 50H7-14014-5-
06275-2140X15hub without slot3419345-0,590ø21 x M8 x 50H7-140-15-17,3
06275-2160X15hub without slot402040-17,30,860ø26 x M10 x 80H7-16015-5-
06275-2160X16hub without slot4020405-0,860ø26 x M10 x 80H7-160-16-18,3
06275-2200X18hub without slot502446-20,81,420ø26 x M10 x 80H7-20018-6-
06275-2200X20hub without slot5024466-1,420ø26 x M10 x 80H7-200-20-22,8
06275-2250X22hub without slot502849-24,82,065ø28 x M12 x 90H7-25022-6-
06275-2250X24hub without slot5028498-2,065ø28 x M12 x 90H7-250-24-27,3
06275-3080X10hub with slot251631-11,40,195ø18 x M6 x 40H7P98010-3-
06275-3080X12hub with slot2516314-0,195ø18 x M6 x 40H7P980-12-13,8
06275-3100X10hub with slot311734-11,40,290ø18 x M6 x 40H7P910010-3-
06275-3100X12hub with slot3117344-0,290ø18 x M6 x 40H7P9100-12-13,8
06275-3125X12hub with slot301837-13,80,530ø21 x M8 x 50H7P912512-4-
06275-3125X14hub with slot3018375-0,530ø21 x M8 x 50H7P9125-14-16,3
06275-3140X14hub with slot341934-16,30,590ø21 x M8 x 50H7P914014-5-
06275-3140X15hub with slot3419345-0,590ø21 x M8 x 50H7P9140-15-17,3
06275-3160X15hub with slot402040-17,30,860ø26 x M10 x 80H7P916015-5-
06275-3160X16hub with slot4020405-0,860ø26 x M10 x 80H7P9160-16-18,3
06275-3200X18hub with slot502446-20,81,420ø26 x M10 x 80H7P920018-6-
06275-3200X20hub with slot5024466-1,420ø26 x M10 x 80H7P9200-20-22,8
06275-3250X22hub with slot502849-24,82,065ø28 x M12 x 90H7P925022-6-
06275-3250X24hub with slot5028498-2,065ø28 x M12 x 90H7P9250-24-27,3
Order No.Surface finishD3L1L3B3 line 2T line 1Approx. weight kgRevolving cylindrical gripToleranceD2ToleranceHub Slot D2 B3D1D2 line 1D2 line 2B3 line 1T line 2
06275-4080X10hub without slot251631-11,40,205ø18 x M6 x 40H7-8010-3-
06275-4080X12hub without slot2516314-0,205ø18 x M6 x 40H7-80-12-13,8
06275-4100X10hub without slot311734-11,40,300ø18 x M6 x 40H7-10010-3-
06275-4100X12hub without slot3117344-0,300ø18 x M6 x 40H7-100-12-13,8
06275-4125X12hub without slot301837-13,80,540ø22 x M8 x 56H7-12512-4-
06275-4125X14hub without slot3018375-0,540ø22 x M8 x 56H7-125-14-16,3
06275-4140X14hub without slot341934-16,30,620ø22 x M8 x 56H7-14014-5-
06275-4140X15hub without slot3419345-0,620ø22 x M8 x 56H7-140-15-17,3
06275-4160X15hub without slot402040-17,30,890ø26 x M10 x 80H7-16015-5-
06275-4160X16hub without slot4020405-0,890ø26 x M10 x 80H7-160-16-18,3
06275-4200X18hub without slot502446-20,81,450ø26 x M10 x 80H7-20018-6-
06275-4200X20hub without slot5024466-1,450ø26 x M10 x 80H7-200-20-22,8
06275-4250X22hub without slot502849-24,82,125ø31 x M12 x 102H7-25022-6-
06275-4250X24hub without slot5028498-2,125ø31 x M12 x 102H7-250-24-27,3
06275-5080X10hub with slot251631-11,40,205ø18 x M6 x 40H7P98010-3-
06275-5080X12hub with slot2516314-0,205ø18 x M6 x 40H7P980-12-13,8
06275-5100X10hub with slot311734-11,40,300ø18 x M6 x 40H7P910010-3-
06275-5100X12hub with slot3117344-0,300ø18 x M6 x 40H7P9100-12-13,8
06275-5125X12hub with slot301837-13,80,540ø22 x M8 x 56H7P912512-4-
06275-5125X14hub with slot3018375-0,540ø22 x M8 x 56H7P9125-14-16,3
06275-5140X14hub with slot341934-16,30,620ø22 x M8 x 56H7P914014-5-
06275-5140X15hub with slot3419345-0,620ø22 x M8 x 56H7P9140-15-17,3
06275-5160X15hub with slot402040-17,30,890ø26 x M10 x 80H7P916015-5-
06275-5160X16hub with slot4020405-0,890ø26 x M10 x 80H7P9160-16-18,3
06275-5200X18hub with slot502446-20,81,450ø26 x M10 x 80H7P920018-6-
06275-5200X20hub with slot5024466-1,450ø26 x M10 x 80H7P9200-20-22,8
06275-5250X22hub with slot502849-24,82,125ø31 x M12 x 102H7P925022-6-
06275-5250X24hub with slot5028498-2,125ø31 x M12 x 102H7P9250-24-27,3

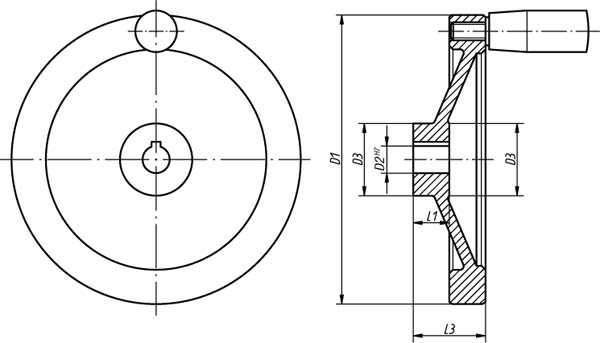

Konstruktion
